Affinity Medical Technologies - a Molex company
| Part Number | 0395232002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

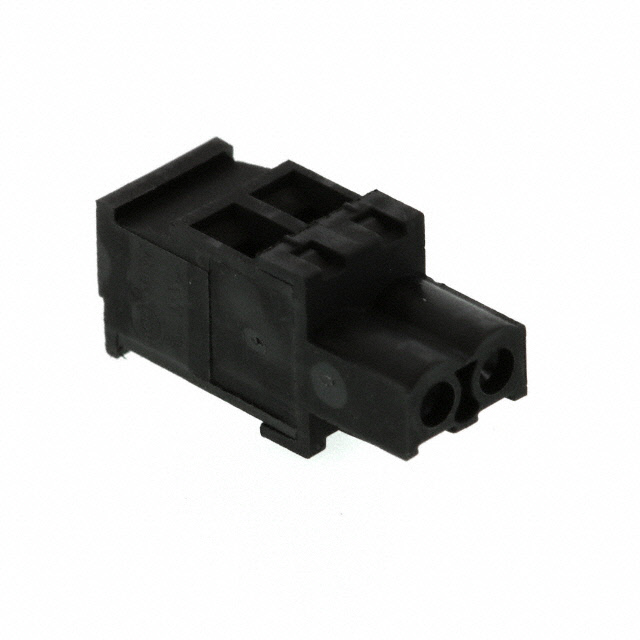

| Description | TERM BLOCK PLUG 2POS 270DEG 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 63588 pcs | Data sheet | 0395232002.pdf |
| Wire Strip Length | 5mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 12-26 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.56 Nm (5.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Eurostyle ESE 39523 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | 270° | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 039523-2002 0395232002-ND 39523-2002 395232002 WM20094 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.020" (25.91mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 270° Free Hanging (In-Line) |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
