0395220006

Affinity Medical Technologies - a Molex company

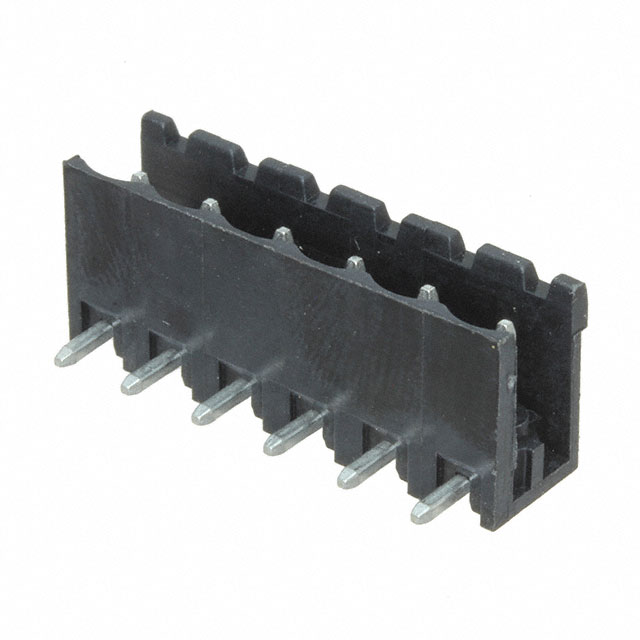

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0395220006
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	TERM BLOCK HDR 6POS 90DEG 5MM
Datasheets:	1.0395220006.pdf 2.0395220006.pdf 3.0395220006.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60874 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60874 pcs

Reference Price (In US Dollars)

1 pcs: $0.60

10 pcs: $0.453

25 pcs: $0.42

50 pcs: $0.378

100 pcs: $0.368

250 pcs: $0.322

500 pcs: $0.295

1000 pcs: $0.267

5000 pcs: $0.235

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.60

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0395220006

Part Number	0395220006	Manufacturer	Affinity Medical Technologies - a Molex company
Description	TERM BLOCK HDR 6POS 90DEG 5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60874 pcs	Data sheet	1.0395220006.pdf 2.0395220006.pdf 3.0395220006.pdf
Wire Strip Length	-	Wire Gauge or Range - mm²	-
Wire Gauge or Range - AWG	-	Voltage - UL	300V
Type	Header, Male Pins, Shrouded (2 Side)	Torque - Screw	-
Termination Style	Solder	Series	Eurostyle ESE 39522
Screw Size	-	Positions Per Level	6
Plug Wire Entry	-	Pitch	0.197" (5.00mm)
Packaging	Bulk	Other Names	039522-0006 0395220006-ND 39522-0006 395220006 WM20093
Operating Temperature	-40°C ~ 105°C	Number of Positions	6
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Height	0.330" (8.38mm)	Ingress Protection	-
Housing Material	Polyamide (PA66), Nylon 6/6	Header Orientation	90°, Right Angle
Features	-	Detailed Description	6 Position Terminal Block Header, Male Pins, Shrouded (2 Side) 0.197" (5.00mm) 90°, Right Angle Through Hole
Current - UL	15A	Current - IEC	-
Contact Tail Length	0.150" (3.81mm)	Contact Mating Finish	Tin
Contact Material	Brass	Color	Black
