Affinity Medical Technologies - a Molex company

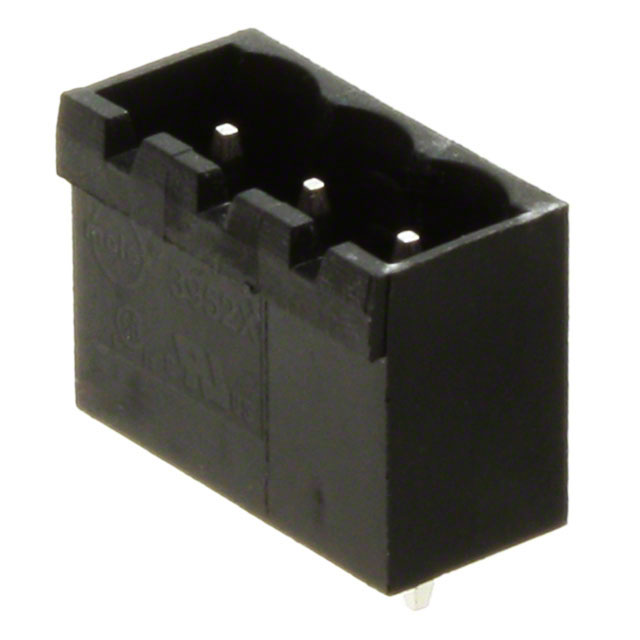

| Part Number | 0395211003 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 3POS VERT 5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 111751 pcs | Data sheet | 0395211003.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle ESE 39521 |
| Screw Size | - | Positions Per Level | 3 |
| Plug Wire Entry | - | Pitch | 0.197" (5.00mm) |
| Packaging | Bulk | Other Names | 039521-1003 039521-1003-E 0395211003-E 39521-1003 39521-1003-E 395211003 395211003-E WM7800 |
| Operating Temperature | -40°C ~ 105°C | Number of Positions | 3 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.470" (11.94mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | Vertical |
| Features | - | Detailed Description | 3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.197" (5.00mm) Vertical Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.130" (3.30mm) | Contact Mating Finish | Tin |
| Contact Material | Brass | Color | Black |
