0395051503

Affinity Medical Technologies - a Molex company

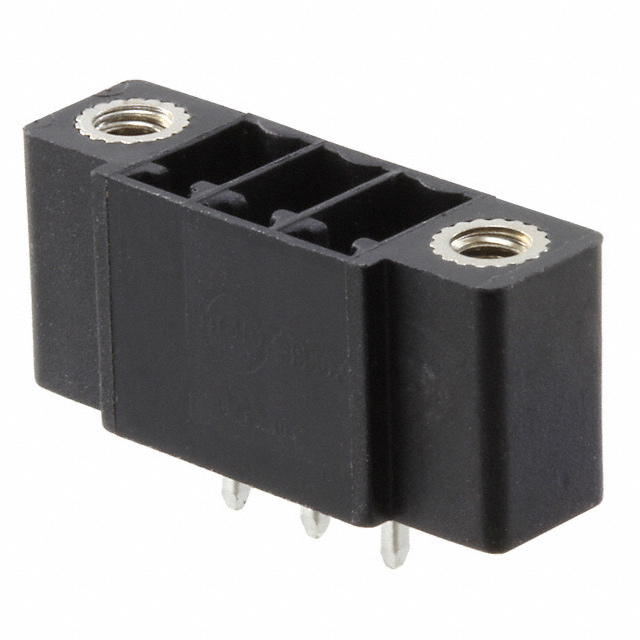

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0395051503
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	TERM BLOCK HDR 3POS VERT 3.5MM
Datasheets:	0395051503.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46778 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46778 pcs

Reference Price (In US Dollars)

1 pcs: $0.647

10 pcs: $0.453

25 pcs: $0.423

50 pcs: $0.384

100 pcs: $0.382

250 pcs: $0.323

500 pcs: $0.306

1000 pcs: $0.272

5000 pcs: $0.221

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.647

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0395051503

Part Number	0395051503	Manufacturer	Affinity Medical Technologies - a Molex company
Description	TERM BLOCK HDR 3POS VERT 3.5MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46778 pcs	Data sheet	0395051503.pdf
Wire Strip Length	-	Wire Gauge or Range - mm²	-
Wire Gauge or Range - AWG	-	Voltage - UL	300V
Type	Header, Male Pins, Shrouded (4 Side)	Torque - Screw	-
Termination Style	Solder	Series	Eurostyle ESE 39505
Screw Size	-	Positions Per Level	3
Plug Wire Entry	-	Pitch	0.138" (3.50mm)
Packaging	Bulk	Other Names	039505--1503 0395051503-ND 39505-1503 395051503 WM9778
Operating Temperature	-40°C ~ 105°C	Number of Positions	3
Number of Levels	1	Mounting Type	Through Hole
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Height	0.360" (9.14mm)	Ingress Protection	-
Housing Material	Polyamide (PA66), Nylon 6/6	Header Orientation	Vertical
Features	Mating Flange	Detailed Description	3 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Current - UL	8A	Current - IEC	-
Contact Tail Length	0.138" (3.50mm)	Contact Mating Finish	Gold
Contact Material	Brass	Color	Black
