Affinity Medical Technologies - a Molex company
| Part Number | 0395000012 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

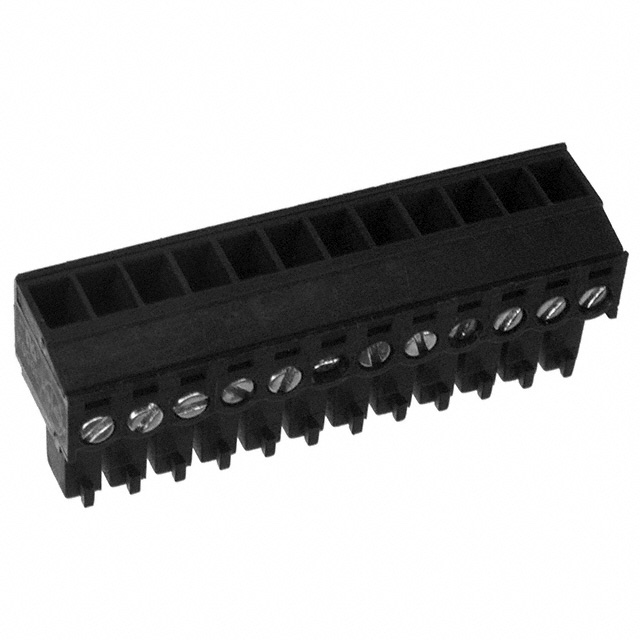

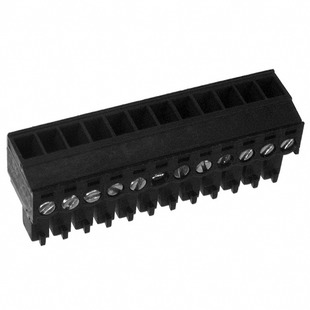

| Description | TERM BLOCK PLUG 12POS STR 3.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 22018 pcs | Data sheet | 0395000012.pdf |
| Wire Strip Length | 6.5mm | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 16-30 AWG | Voltage - UL | 300V |
| Type | Plug, Female Sockets | Torque - Screw | 0.23 Nm (2.0 Lb-In) |
| Termination Style | Screw - Rising Cage Clamp | Series | Eurostyle ESE 39500 |
| Screw Size | - | Positions Per Level | 12 |
| Plug Wire Entry | 180° | Pitch | 0.138" (3.50mm) |
| Packaging | Bulk | Other Names | 039500-0012 039500-0012-E 0395000012-E 39500-0012 39500-0012-E 395000012 395000012-E WM7742 |
| Operating Temperature | -40°C ~ 115°C | Number of Positions | 12 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 10 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.440" (11.18mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA66), Nylon 6/6 | Header Orientation | - |
| Features | - | Detailed Description | 12 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line) |
| Current - UL | 8A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
