Affinity Medical Technologies - a Molex company

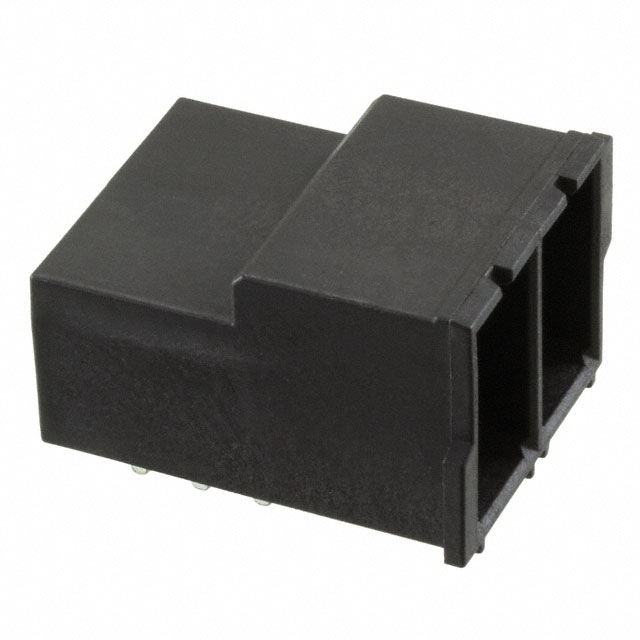

| Part Number | 0394250002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 2POS 90DEG 12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 17012 pcs | Data sheet | 0394250002.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 600V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | EuroMax 39425 |
| Screw Size | - | Positions Per Level | 2 |
| Plug Wire Entry | - | Pitch | 0.472" (12.00mm) |
| Packaging | Bulk | Other Names | 039425-0002 0394250002-ND 39425-0002 394250002 421902 WM13950 |
| Operating Temperature | 130°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.800" (20.32mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 2 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.472" (12.00mm) 90°, Right Angle Through Hole |
| Current - UL | 85A | Current - IEC | - |
| Contact Tail Length | 0.169" (4.29mm) | Contact Mating Finish | Tin |
| Contact Material | Copper | Color | Black |
