Affinity Medical Technologies - a Molex company

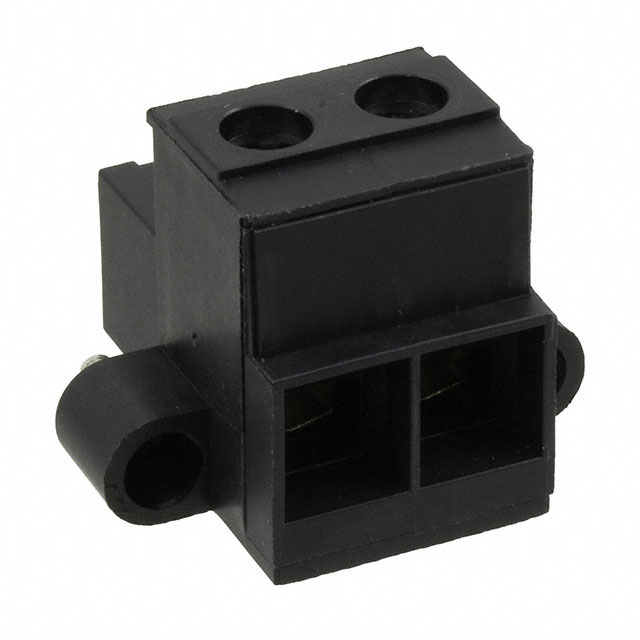

| Part Number | 0394220002 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK PLUG 2POS STR 12MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 6696 pcs | Data sheet | 0394220002.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | 3-14 AWG | Voltage - UL | 600V |
| Type | Plug, Female Sockets | Torque - Screw | - |
| Termination Style | Screw - Rising Cage Clamp | Series | EuroMax 39422 |
| Screw Size | M5 | Positions Per Level | 2 |
| Plug Wire Entry | 180° | Pitch | 0.472" (12.00mm) |
| Packaging | Bulk | Other Names | 039422-0002 0394220002-ND 39422-0002 394220002 424502 WM13949 |
| Operating Temperature | 130°C | Number of Positions | 2 |
| Number of Levels | 1 | Mounting Type | Free Hanging (In-Line) |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 7 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 1.311" (33.30mm) | Ingress Protection | - |
| Housing Material | Polybutylene Terephthalate (PBT) | Header Orientation | - |
| Features | Mating Flange, Retention Latches (Non-Wire Side) | Detailed Description | 2 Position Terminal Block Plug, Female Sockets 0.472" (12.00mm) 180° Free Hanging (In-Line) |
| Current - UL | 85A | Current - IEC | - |
| Contact Tail Length | - | Contact Mating Finish | Tin |
| Contact Material | Copper Alloy | Color | Black |
