Affinity Medical Technologies - a Molex company

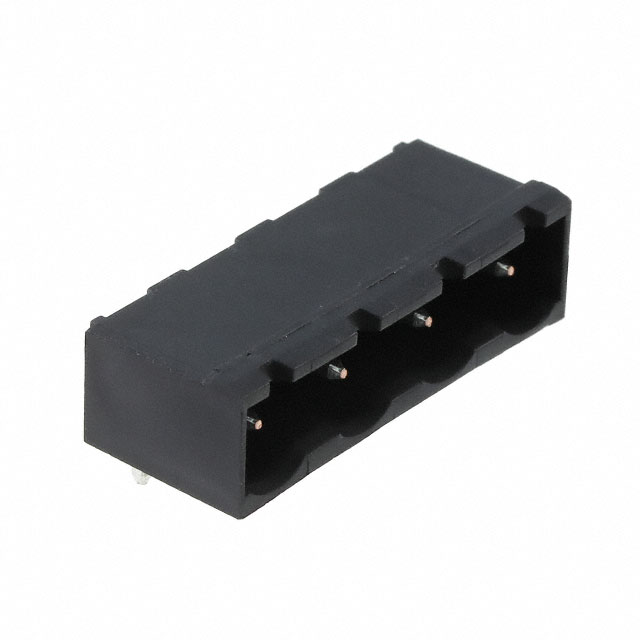

| Part Number | 0393730004 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | TERM BLOCK HDR 4POS 90DEG 7.5MM | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 68909 pcs | Data sheet | 0393730004.pdf |
| Wire Strip Length | - | Wire Gauge or Range - mm² | - |
| Wire Gauge or Range - AWG | - | Voltage - UL | 300V |
| Type | Header, Male Pins, Shrouded (4 Side) | Torque - Screw | - |
| Termination Style | Solder | Series | Eurostyle 39373 |
| Screw Size | - | Positions Per Level | 4 |
| Plug Wire Entry | - | Pitch | 0.295" (7.50mm) |
| Packaging | Bulk | Other Names | 0393-73-0004 039373-0004 0393730004-ND 371904 393-73-0004 39373-0004 393730004 WM15805 |
| Operating Temperature | 110°C | Number of Positions | 4 |
| Number of Levels | 1 | Mounting Type | Through Hole |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Manufacturer Standard Lead Time | 8 Weeks | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Insulation Height | 0.329" (8.36mm) | Ingress Protection | - |
| Housing Material | Polyamide (PA), Nylon | Header Orientation | 90°, Right Angle |
| Features | - | Detailed Description | 4 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.295" (7.50mm) 90°, Right Angle Through Hole |
| Current - UL | 15A | Current - IEC | - |
| Contact Tail Length | 0.138" (3.50mm) | Contact Mating Finish | Tin |
| Contact Material | Phosphor Bronze | Color | Black |
