0353620550

Affinity Medical Technologies - a Molex company

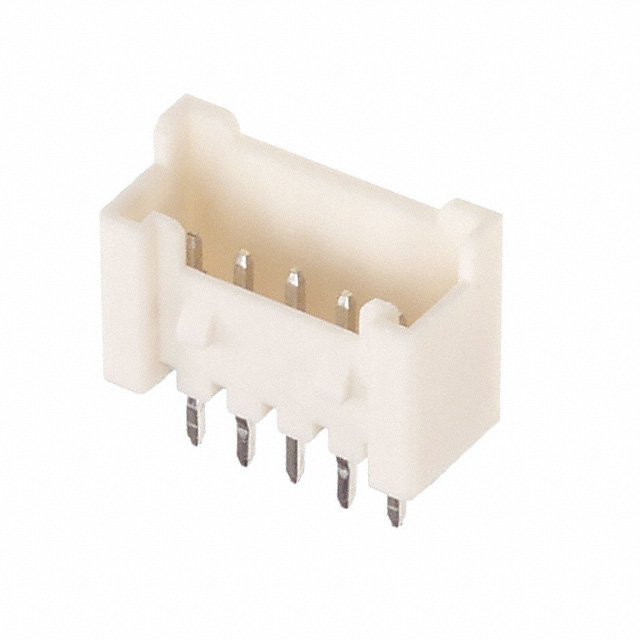

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0353620550
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS 2MM VERT TIN
Datasheets:	1.0353620550.pdf 2.0353620550.pdf 3.0353620550.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	237010 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 237010 pcs

Reference Price (In US Dollars)

1 pcs: $0.144

10 pcs: $0.135

100 pcs: $0.095

500 pcs: $0.081

1000 pcs: $0.068

5000 pcs: $0.058

10000 pcs: $0.054

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.144

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0353620550

Part Number	0353620550	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS 2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	237010 pcs	Data sheet	1.0353620550.pdf 2.0353620550.pdf 3.0353620550.pdf
Voltage Rating	125V	Termination	Kinked Pin, Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Sherlock 35362	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	035362-0550 035362-0550-P 0353620550-P 35362-0550 35362-0550-ND 35362-0550-P 353620550 353620550-P WM18923
Operating Temperature	-40°C ~ 105°C	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	8.5mm
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.335" (8.51mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 5 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.145" (3.70mm)	Contact Finish Thickness - Post	39.4µin (1.00µm)
Contact Finish Thickness - Mating	39.4µin (1.00µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose
