0353180820

Affinity Medical Technologies - a Molex company

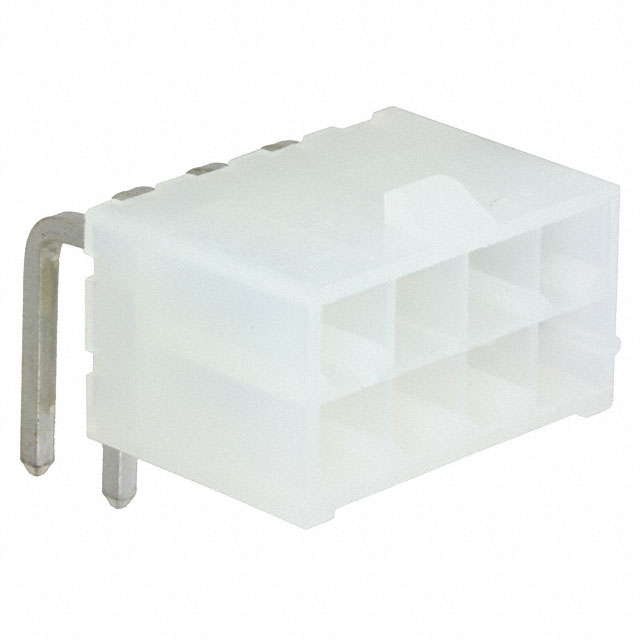

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0353180820
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 8POS R/A WHITE
Datasheets:	0353180820.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	142376 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 142376 pcs

Reference Price (In US Dollars)

1 pcs: $0.21

10 pcs: $0.195

100 pcs: $0.15

500 pcs: $0.13

1000 pcs: $0.107

5000 pcs: $0.094

10000 pcs: $0.088

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.21

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0353180820

Part Number	0353180820	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 8POS R/A WHITE	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	142376 pcs	Data sheet	0353180820.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 35318	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	035318-0820 0353180820-ND 353180-0820 353180820 WM13197
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	8
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	14 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.378" (9.60mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 8 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.173" (4.40mm)
Contact Length - Mating	0.208" (5.30mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
