0348250200

Affinity Medical Technologies - a Molex company

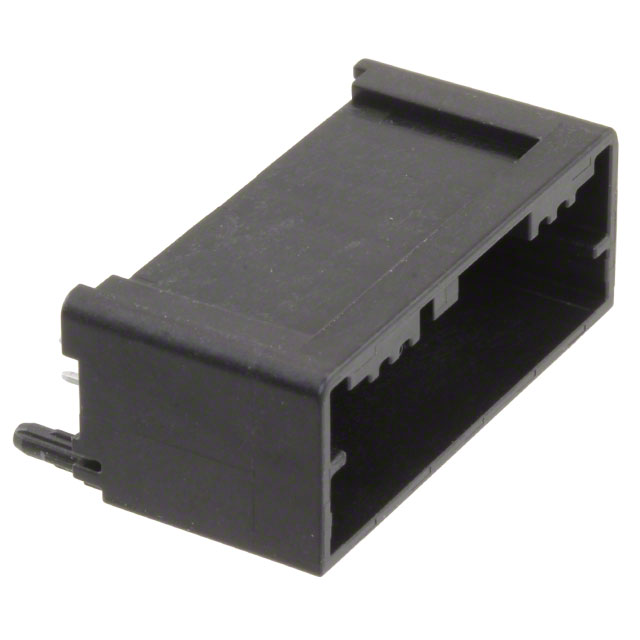

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0348250200
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINI50 VHDR 20CKT BLK POL A
Datasheets:	1.0348250200.pdf 2.0348250200.pdf 3.0348250200.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	35031 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 35031 pcs

Reference Price (In US Dollars)

1 pcs: $0.957

10 pcs: $0.869

400 pcs: $0.674

800 pcs: $0.603

1200 pcs: $0.532

5200 pcs: $0.472

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.957

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0348250200

Part Number	0348250200	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINI50 VHDR 20CKT BLK POL A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	35031 pcs	Data sheet	1.0348250200.pdf 2.0348250200.pdf 3.0348250200.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini50 34825	Row Spacing - Mating	-
Pitch - Mating	0.079" (2.00mm)	Packaging	Tray
Overall Contact Length	-	Other Names	034825-0200 34825-0200 348250200 WM11132
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.614" (15.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide, Solder Retention	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 20 position 0.079" (2.00mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.113" (2.87mm)
Contact Length - Mating	0.218" (5.55mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
