0347630001

Affinity Medical Technologies - a Molex company

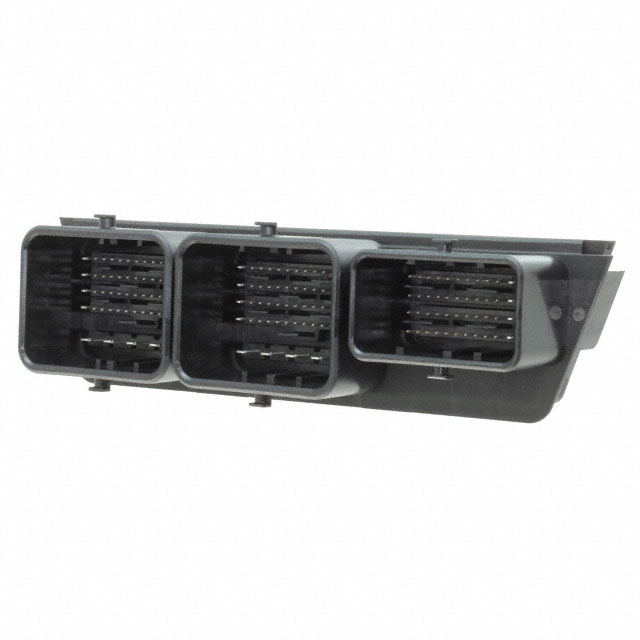

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0347630001
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CMC HDR ASSY 154 WAY JD MECA
Datasheets:	1.0347630001.pdf 2.0347630001.pdf 3.0347630001.pdf 4.0347630001.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5047 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5047 pcs

Reference Price (In US Dollars)

1 pcs: $6.687

10 pcs: $6.036

25 pcs: $5.783

64 pcs: $5.421

128 pcs: $5.241

256 pcs: $4.952

512 pcs: $4.807

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.687

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0347630001

Part Number	0347630001	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CMC HDR ASSY 154 WAY JD MECA	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5047 pcs	Data sheet	1.0347630001.pdf 2.0347630001.pdf 3.0347630001.pdf 4.0347630001.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	CMC 34763	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	0347-63-0001 0347630001-ND 347-63-0001 34763-0001 347630001 WM17911
Operating Temperature	-	Number of Rows	-
Number of Positions Loaded	All	Number of Positions	154
Mounting Type	Board Edge, Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	1.503" (38.18mm)
Insulation Color	-	Ingress Protection	-
Features	-	Fastening Type	Latch Lock
Detailed Description	Connector Header Board Edge, Through Hole, Right Angle 154 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	-
Contact Material	Phosphor Bronze	Contact Length - Post	-
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
