0346960101

Affinity Medical Technologies - a Molex company

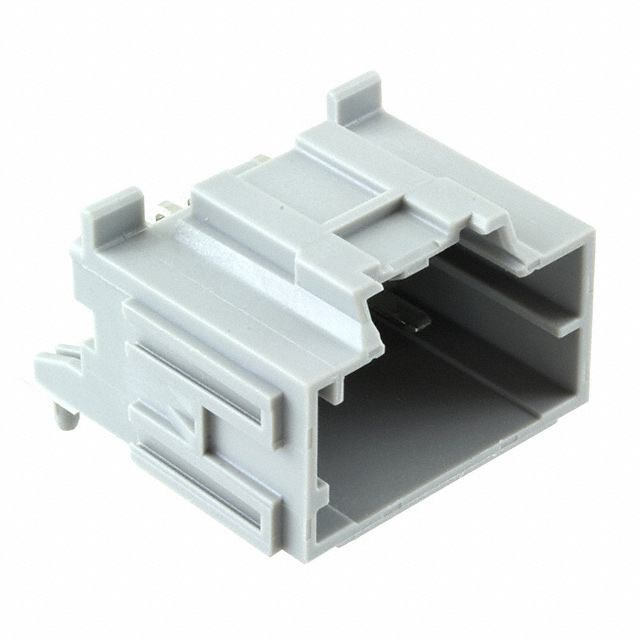

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0346960101
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	POWERSTAC RAHDR 10POS GRY POL B
Datasheets:	0346960101.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	33949 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 33949 pcs

Reference Price (In US Dollars)

1 pcs: $0.957

10 pcs: $0.918

100 pcs: $0.765

560 pcs: $0.65

1120 pcs: $0.554

5040 pcs: $0.497

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.957

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0346960101

Part Number	0346960101	Manufacturer	Affinity Medical Technologies - a Molex company
Description	POWERSTAC RAHDR 10POS GRY POL B	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	33949 pcs	Data sheet	0346960101.pdf
Voltage Rating	500V	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Stac64 34696	Row Spacing - Mating	0.248" (6.30mm)
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	0346-96-0101 034696-0101 0346960101-ND 346-96-0101 34696-0101 346960101 WM14546
Operating Temperature	-40°C ~ 100°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	10 (6 + 4 Power)
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.868" (22.05mm)
Insulation Color	Gray	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 10 (6 + 4 Power) position	Current Rating	-
Contact Type	Male Blade; Male Pin	Contact Shape	Rectangular, Square
Contact Material	Copper Alloy	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
