0346916201

Affinity Medical Technologies - a Molex company

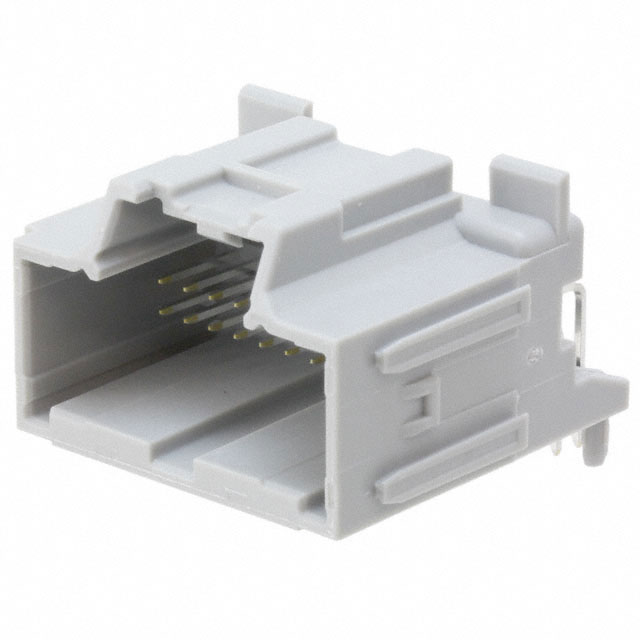

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0346916201
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 20POS RA GRAY
Datasheets:	1.0346916201.pdf 2.0346916201.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	40067 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 40067 pcs

Reference Price (In US Dollars)

1 pcs: $0.874

10 pcs: $0.793

100 pcs: $0.679

500 pcs: $0.566

1000 pcs: $0.485

5000 pcs: $0.43

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.874

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0346916201

Part Number	0346916201	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 20POS RA GRAY	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	40067 pcs	Data sheet	1.0346916201.pdf 2.0346916201.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Stac64 34691	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	034691-6201 34691-6201 346916201 WM10446
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.868" (22.05mm)
Insulation Color	Gray	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 20 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Cartridge Brass	Contact Length - Post	0.119" (3.02mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
