0346900200

Affinity Medical Technologies - a Molex company

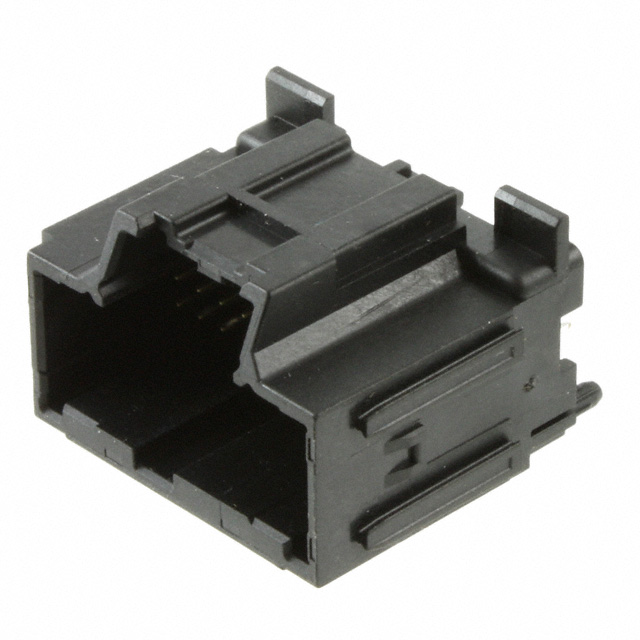

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0346900200
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 20POS .100 VERT BLK
Datasheets:	1.0346900200.pdf 2.0346900200.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	32541 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 32541 pcs

Reference Price (In US Dollars)

1 pcs: $0.899

10 pcs: $0.817

100 pcs: $0.70

560 pcs: $0.584

1120 pcs: $0.50

5040 pcs: $0.444

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.899

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0346900200

Part Number	0346900200	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 20POS .100 VERT BLK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	32541 pcs	Data sheet	1.0346900200.pdf 2.0346900200.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Stac64 34690	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tray
Overall Contact Length	-	Other Names	034690-0200 0346900200-ND 34690-0200 346900200 WM6284
Operating Temperature	-40°C ~ 105°C	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	10 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.886" (22.50mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 20 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Cartridge Brass	Contact Length - Post	0.117" (2.97mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
