0313862002

Affinity Medical Technologies - a Molex company

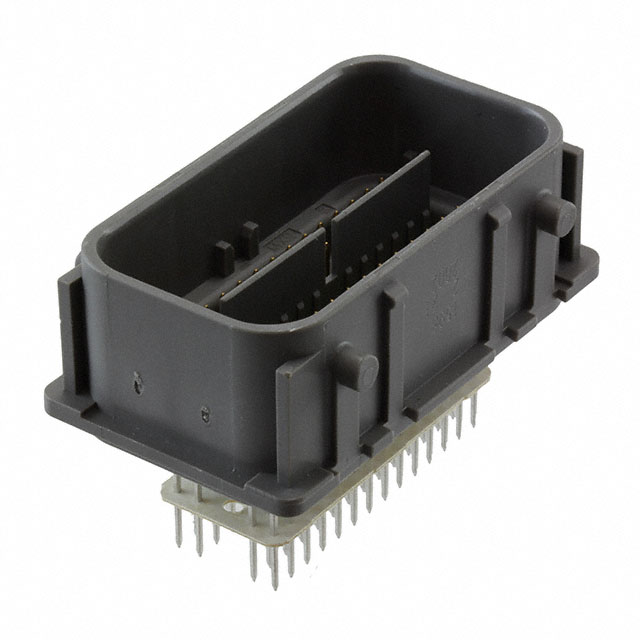

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0313862002
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MX123 56CKT GRAY H SHRD ASSY 313
Datasheets:	0313862002.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4954 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4954 pcs

Reference Price (In US Dollars)

1 pcs: $6.275

10 pcs: $5.828

100 pcs: $4.483

500 pcs: $4.094

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$6.275

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0313862002

Part Number	0313862002	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MX123 56CKT GRAY H SHRD ASSY 313	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4954 pcs	Data sheet	0313862002.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	MX123 31386	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	031386-2002 0313862002-ND 31386-2002 313862002 WM19955
Operating Temperature	-	Number of Rows	4
Number of Positions Loaded	All	Number of Positions	56
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	Not Applicable
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled	Insulation Height	0.848" (21.54mm)
Insulation Color	Gray	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 56 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.256" (6.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	200.0µin (5.08µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive
