0307005241

Affinity Medical Technologies - a Molex company

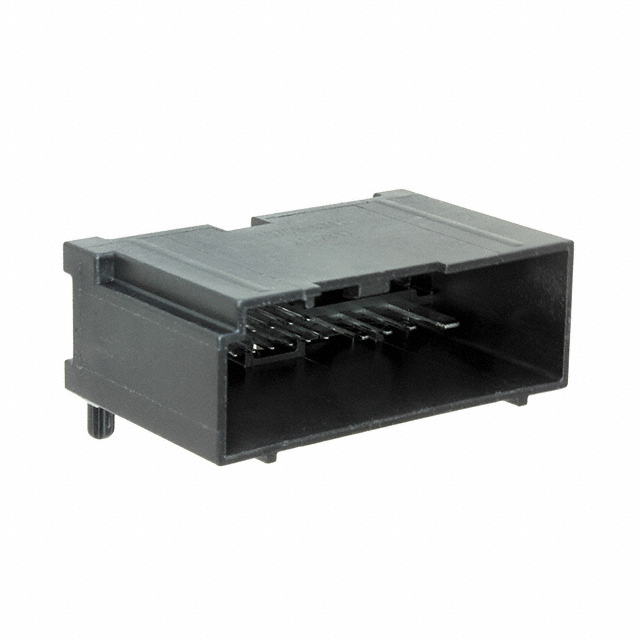

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0307005241
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 24POS R/A DL BLACK
Datasheets:	0307005241.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	24523 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 24523 pcs

Reference Price (In US Dollars)

1 pcs: $1.604

10 pcs: $1.54

100 pcs: $1.283

546 pcs: $1.091

1092 pcs: $0.93

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.604

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0307005241

Part Number	0307005241	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 24POS R/A DL BLACK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	24523 pcs	Data sheet	0307005241.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	H-DAC 64 30700	Row Spacing - Mating	-
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	030700-5241 0307005241-ND 30700-5241 307005-5241 307005241 WM19945
Operating Temperature	-	Number of Rows	3
Number of Positions Loaded	All	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	-	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Syndiotactic Polystyrene (SPS), Glass Filled	Insulation Height	0.743" (18.87mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole, Right Angle 24 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.131" (3.33mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive
