0191150009

Affinity Medical Technologies - a Molex company

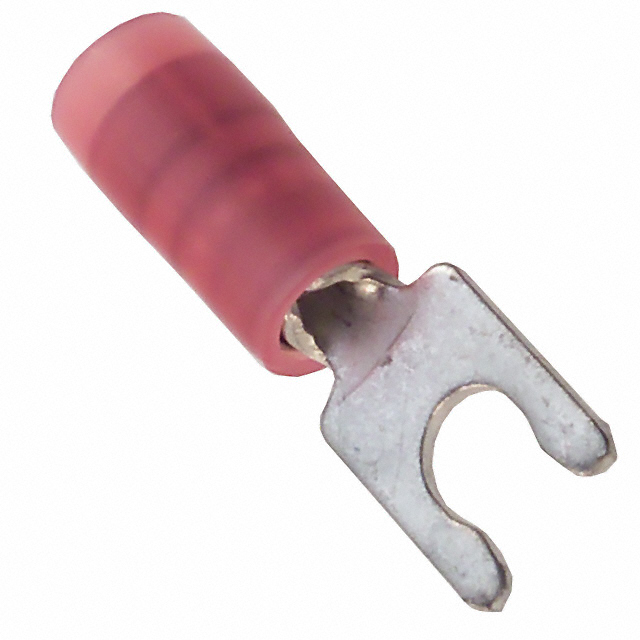

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0191150009
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SPADE TERM 18-22AWG #6 RED
Datasheets:	0191150009.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	241012 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 241012 pcs

Reference Price (In US Dollars)

1 pcs: $0.148

10 pcs: $0.139

25 pcs: $0.119

50 pcs: $0.101

100 pcs: $0.097

250 pcs: $0.087

500 pcs: $0.083

1000 pcs: $0.069

2500 pcs: $0.063

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0191150009

Part Number	0191150009	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SPADE TERM 18-22AWG #6 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	241012 pcs	Data sheet	0191150009.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.250" (6.35mm)
Tongue Inside Opening	0.114" (2.90mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	6 Stud
Series	Avikrimp	Packaging	Bulk
Other Names	191-15-0009-C 19115-0009 19115-0009-C 191150009 AA-8704-06 WM18324	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Polyamide (PA), Nylon
Manufacturer Standard Lead Time	2 Weeks	Length - Termination	0.400" (10.16mm)
Length - Ring Center to Termination	0.230" (5.84mm)	Length - Overall	0.810" (20.57mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.144" (3.65mm)
Insulation	Insulated	Features	-
Detailed Description	Red 6 Stud Spade Terminal Connector Crimp 18-22 AWG	Contact Material	Copper
Contact Finish	Electro-Tin	Color	Red
