0190990049

Affinity Medical Technologies - a Molex company

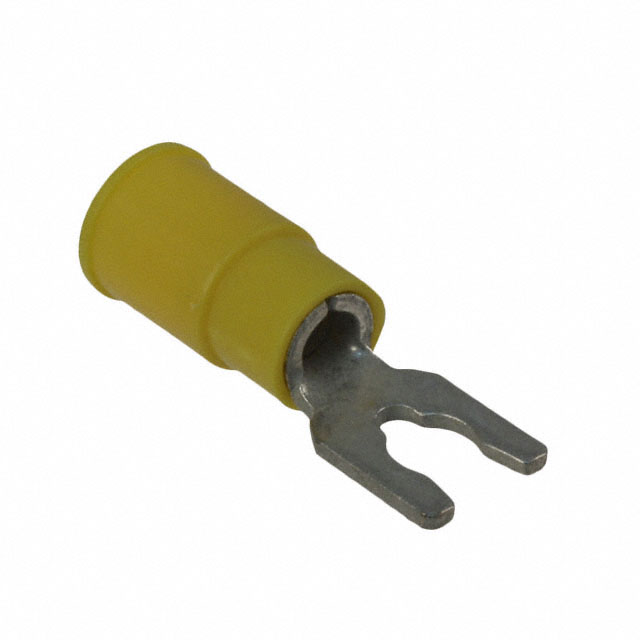

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0190990049
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SPADE TERM 10-12AWG #8 YEL
Datasheets:	1.0190990049.pdf 2.0190990049.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	160898 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 160898 pcs

Reference Price (In US Dollars)

1 pcs: $0.191

10 pcs: $0.18

25 pcs: $0.161

50 pcs: $0.144

100 pcs: $0.138

250 pcs: $0.126

500 pcs: $0.12

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.191

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0190990049

Part Number	0190990049	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SPADE TERM 10-12AWG #8 YEL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	160898 pcs	Data sheet	1.0190990049.pdf 2.0190990049.pdf
Wire Gauge	10-12 AWG	Width - Outer Edges	0.310" (7.87mm)
Tongue Inside Opening	0.139" (3.53mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	8 Stud
Series	InsulKrimp	Packaging	Cut Tape (CT)
Other Names	WM3695CT	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Manufacturer Standard Lead Time	5 Weeks	Length - Termination	0.550" (13.97mm)
Length - Ring Center to Termination	0.261" (6.63mm)	Length - Overall	1.016" (25.80mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.250" (6.35mm)
Insulation	Insulated	Features	-
Detailed Description	Yellow 8 Stud Spade Terminal Connector Crimp 10-12 AWG	Contact Material	Copper
Contact Finish	Electro-Tin	Color	Yellow
