0190990016

Affinity Medical Technologies - a Molex company

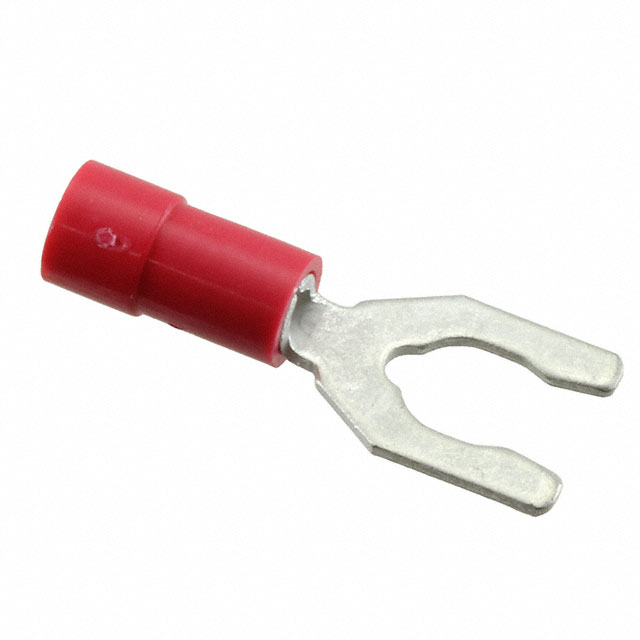

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0190990016
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN SPADE TERM 18-22AWG #10 RED
Datasheets:	1.0190990016.pdf 2.0190990016.pdf 3.0190990016.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	583310 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 583310 pcs

Reference Price (In US Dollars)

1500 pcs: $0.066

3000 pcs: $0.063

7500 pcs: $0.059

10500 pcs: $0.055

15000 pcs: $0.053

37500 pcs: $0.053

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.066

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0190990016

Part Number	0190990016	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN SPADE TERM 18-22AWG #10 RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	583310 pcs	Data sheet	1.0190990016.pdf 2.0190990016.pdf 3.0190990016.pdf
Wire Gauge	18-22 AWG	Width - Outer Edges	0.330" (8.38mm)
Tongue Inside Opening	0.156" (3.96mm)	Termination	Crimp
Terminal Type	Spring, Snap	Stud/Tab Size	10 Stud
Series	InsulKrimp	Packaging	Tape & Reel (TR)
Other Names	019099-0016 0190990016-ND 19099-0016 190990016 AA-2715-10XT WM14239TR	Mounting Type	Free Hanging (In-Line)
Moisture Sensitivity Level (MSL)	1 (Unlimited)	Material - Insulation	Poly-Vinyl Chloride (PVC)
Manufacturer Standard Lead Time	5 Weeks	Length - Termination	0.405" (10.29mm)
Length - Ring Center to Termination	0.261" (6.63mm)	Length - Overall	0.919" (23.34mm)
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Diameter	0.145" (3.68mm)
Insulation	Insulated	Features	-
Detailed Description	Red 10 Stud Spade Terminal Connector Crimp 18-22 AWG	Contact Material	Copper
Contact Finish	Electro-Tin	Color	Red
