Affinity Medical Technologies - a Molex company
| Part Number | 0051260000 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|

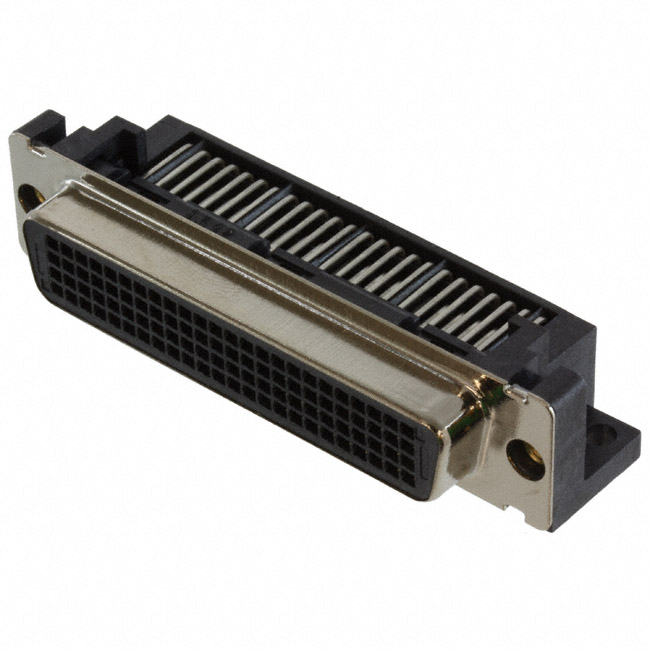

| Description | CONN D-TYPE RCPT 96POS R/A SLDR | Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 4841 pcs | Data sheet | 0051260000.pdf |
| Wire Gauge | - | Voltage Rating | 40V |
| Termination | Solder | Shell Size, Connector Layout | 0.075 Pitch x 0.075 Row to Row |
| Shell Material, Finish | Steel, Nickel Plated | Series | Low Force Helix (LFH) 70660 |
| Packaging | Tube | Other Names | 005126-0000 05126-0000 51-26-0000 5126-0000 51260000 706600001 WM7268 |
| Operating Temperature | -20°C ~ 80°C | Number of Rows | 4 |
| Number of Positions | 96 | Mounting Type | Panel Mount, Through Hole, Right Angle |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) | Material Flammability Rating | UL94 V-0 |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant | Ingress Protection | - |
| Housing Material | Liquid Crystal Polymer (LCP), Glass Filled | Flange Feature | Housing/Shell (M3) |
| Features | Shielded | Detailed Description | 96 Position D-Type, Board to Board, Matrix Receptacle, Female Sockets Connector |
| Current Rating | 1A | Contact Type | Signal |
| Contact Material | Beryllium Copper | Contact Form | - |
| Contact Finish Thickness | 30.0µin (0.76µm) | Contact Finish | Gold |
| Connector Type | Receptacle, Female Sockets | Connector Style | D-Type, Board to Board, Matrix |
| Color | Black | Backset Spacing | 0.332" (8.43mm) |
