0050362426

Affinity Medical Technologies - a Molex company

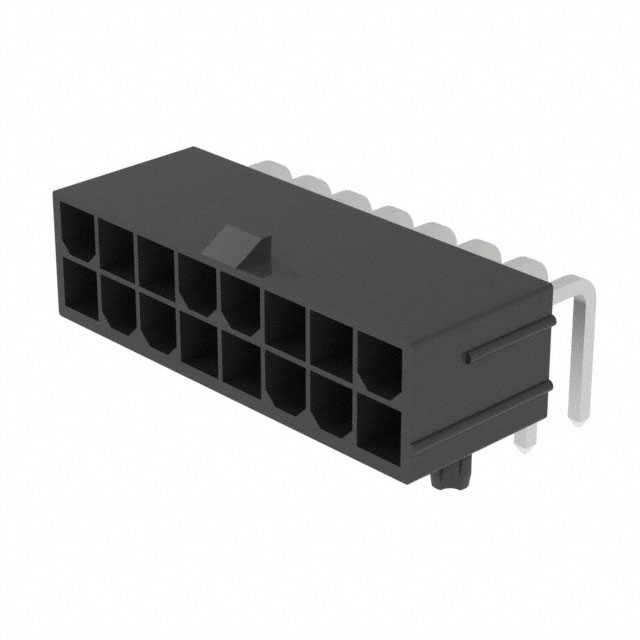

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0050362426
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT JR RA HDR ASSY LCP 16W/P
Datasheets:	1.0050362426.pdf 2.0050362426.pdf 3.0050362426.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	46051 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 46051 pcs

Reference Price (In US Dollars)

1 pcs: $0.842

10 pcs: $0.764

100 pcs: $0.655

500 pcs: $0.546

1440 pcs: $0.468

5760 pcs: $0.415

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.842

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0050362426

Part Number	0050362426	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT JR RA HDR ASSY LCP 16W/P	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	46051 pcs	Data sheet	1.0050362426.pdf 2.0050362426.pdf 3.0050362426.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5569	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0050-36-2426 0050362426-ND 050-36-2426 50-36-2426 5036-2426 50362426 5569-16A7MS-130-T WM19569
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	16
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.378" (9.60mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 16 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
