0050348535

Affinity Medical Technologies - a Molex company

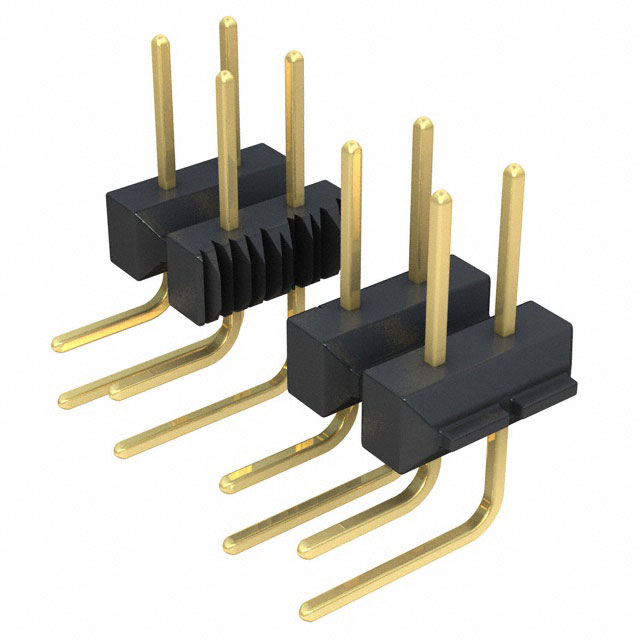

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0050348535
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CGRID R/A BKWY HPRO HDR 30POS
Datasheets:	0050348535.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	29918 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 29918 pcs

Reference Price (In US Dollars)

1120 pcs: $1.156

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$1.156

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0050348535

Part Number	0050348535	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CGRID R/A BKWY HPRO HDR 30POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	29918 pcs	Data sheet	0050348535.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	C-Grid 70216	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0050-34-8535 005034-8535 50-34-8535 50348535 A-70216-0326
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	30
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.220" (5.60mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 30 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.110" (2.79mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
