0050291692

Affinity Medical Technologies - a Molex company

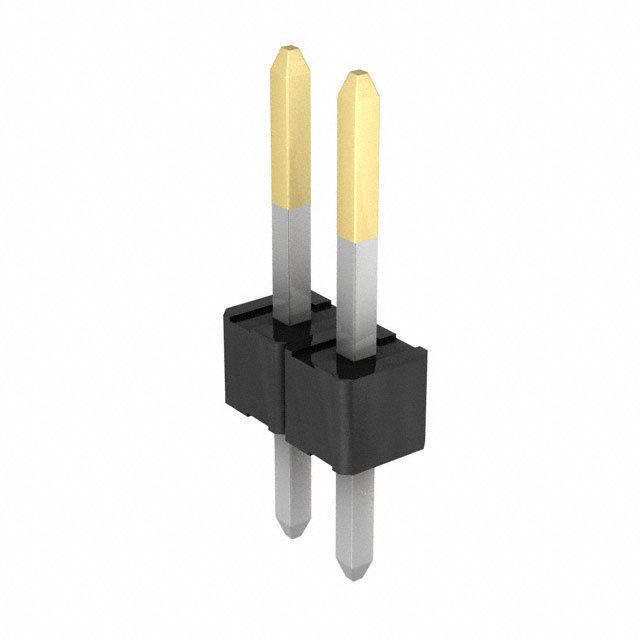

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0050291692
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 100 HDR ASSY BKWY 2POS
Datasheets:	1.0050291692.pdf 2.0050291692.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	1969313 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 1969313 pcs

Reference Price (In US Dollars)

30000 pcs: $0.017

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:
Qty:

Total:$0.017

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0050291692

Part Number	0050291692	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 100 HDR ASSY BKWY 2POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	1969313 pcs	Data sheet	1.0050291692.pdf 2.0050291692.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 42375	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.455" (11.56mm)	Other Names	0050-29-1692 005029-1692 42375-0037 50-29-1692 50291692
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon, Glass Filled	Insulation Height	0.090" (2.29mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 2 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.125" (3.18mm)
Contact Length - Mating	0.240" (6.10mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header, Breakaway
Applications	Automotive, General Purpose, Medical, Telecommunications
