0039532244

Affinity Medical Technologies - a Molex company

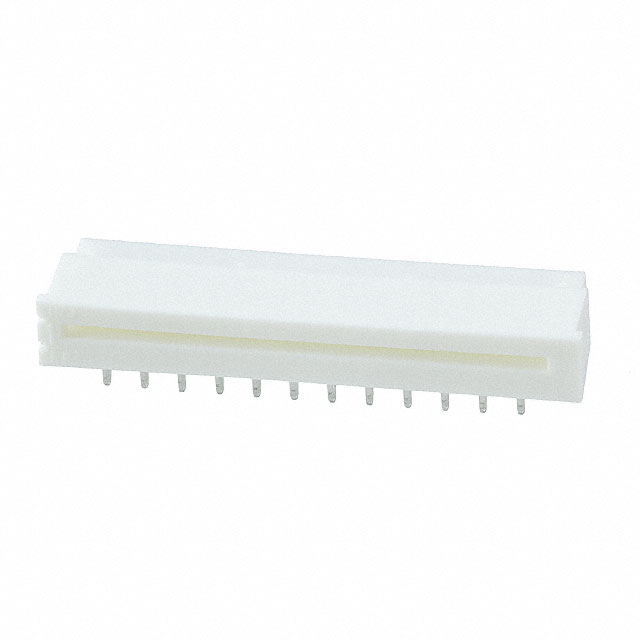

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039532244
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 24POS 1.25MM R/A
Datasheets:	0039532244.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42304 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42304 pcs

Reference Price (In US Dollars)

1 pcs: $0.769

10 pcs: $0.699

25 pcs: $0.656

50 pcs: $0.628

100 pcs: $0.599

400 pcs: $0.542

800 pcs: $0.485

1200 pcs: $0.428

2800 pcs: $0.399

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.769

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039532244

Part Number	0039532244	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 24POS 1.25MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42304 pcs	Data sheet	0039532244.pdf
Voltage Rating	200V	Termination	Solder
Series	5597	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	0039-53-2244 003953-2244 0039532244-ND 39-53-2244 39532244 5597-24APB7F WM14527
Operating Temperature	-20°C ~ 80°C	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	22 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	-	Height Above Board	0.213" (5.40mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	24 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	Polybutylene Terephthalate (PBT), Polyester	Actuator Color	-
