0039532145

Affinity Medical Technologies - a Molex company

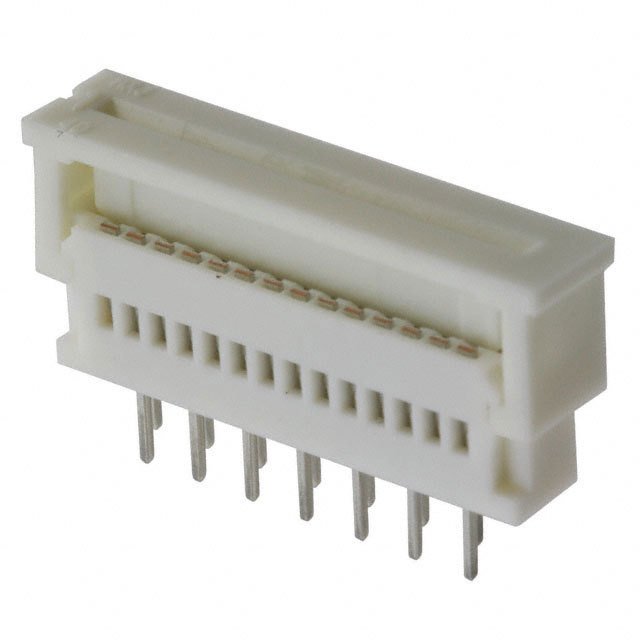

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039532145
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC VERT 14POS 1.25MM PCB
Datasheets:	0039532145.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	59601 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 59601 pcs

Reference Price (In US Dollars)

1 pcs: $0.491

10 pcs: $0.433

25 pcs: $0.407

50 pcs: $0.391

100 pcs: $0.374

250 pcs: $0.34

500 pcs: $0.306

1000 pcs: $0.272

2500 pcs: $0.246

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.491

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039532145

Part Number	0039532145	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC VERT 14POS 1.25MM PCB	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	59601 pcs	Data sheet	0039532145.pdf
Voltage Rating	200V	Termination	Solder
Series	5597	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	0039-53-2145 39-53-2145 39532145 5597-14CPB7F WM2861
Operating Temperature	-20°C ~ 80°C	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	23 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	-	Height Above Board	0.295" (7.50mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	14 Position FFC, FPC Connector Contacts, Vertical, 1 Sided 0.049" (1.25mm) Through Hole
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Vertical, 1 Sided	Cable End Type	Straight
Actuator Material	Polybutylene Terephthalate (PBT), Polyester	Actuator Color	-
