0039532114

Affinity Medical Technologies - a Molex company

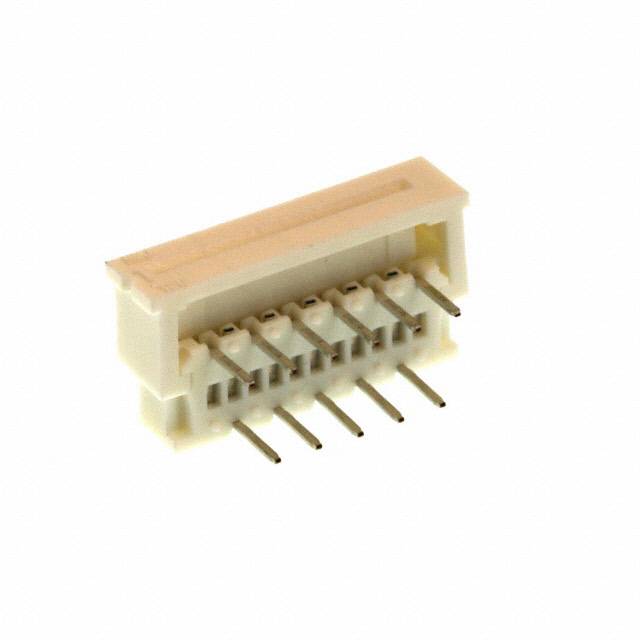

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039532114
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN FFC TOP 11POS 1.25MM R/A
Datasheets:	0039532114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	31531 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 31531 pcs

Reference Price (In US Dollars)

1 pcs: $1.217

10 pcs: $1.17

25 pcs: $1.072

50 pcs: $1.024

100 pcs: $0.975

250 pcs: $0.853

900 pcs: $0.755

1800 pcs: $0.682

2700 pcs: $0.658

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.217

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039532114

Part Number	0039532114	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN FFC TOP 11POS 1.25MM R/A	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	31531 pcs	Data sheet	0039532114.pdf
Voltage Rating	200V	Termination	Solder
Series	5597	Pitch	0.049" (1.25mm)
Packaging	Tray	Other Names	0039-53-2114 003953-2114 0039532114-ND 39-53-2114 39532114 5597-11APB7F WM14525
Operating Temperature	-20°C ~ 80°C	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	30	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	22 Weeks	Locking Feature	Slide Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT), Polyester
Housing Color	-	Height Above Board	0.213" (5.40mm)
Flat Flex Type	FFC, FPC	Features	Zero Insertion Force (ZIF)
FFC, FCB Thickness	0.30mm	Detailed Description	11 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Current Rating	1A	Contact Material	Phosphor Bronze
Contact Finish Thickness	39.4µin (1.00µm)	Contact Finish	Tin Bismuth
Connector/Contact Type	Contacts, Top	Cable End Type	Straight
Actuator Material	Polybutylene Terephthalate (PBT), Polyester	Actuator Color	-
