0039320034

Affinity Medical Technologies - a Molex company

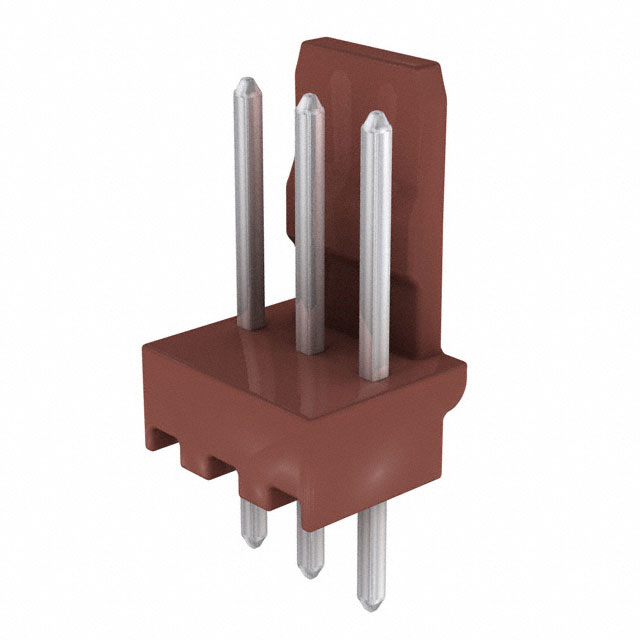

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039320034
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONNECTOR 2.5MM RED
Datasheets:	0039320034.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	318398 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 318398 pcs

Reference Price (In US Dollars)

20000 pcs: $0.119

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.119

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039320034

Part Number	0039320034	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONNECTOR 2.5MM RED	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	318398 pcs	Data sheet	0039320034.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 5045	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	0.559" (14.20mm)	Other Names	0039-32-0034 003932-0034 39-32-0034 39320034 5045-03A-RE
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.461" (11.70mm)
Insulation Color	Red	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 3 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.134" (3.40mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	-
Contact Finish Thickness - Mating	-	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	-
