Affinity Medical Technologies - a Molex company

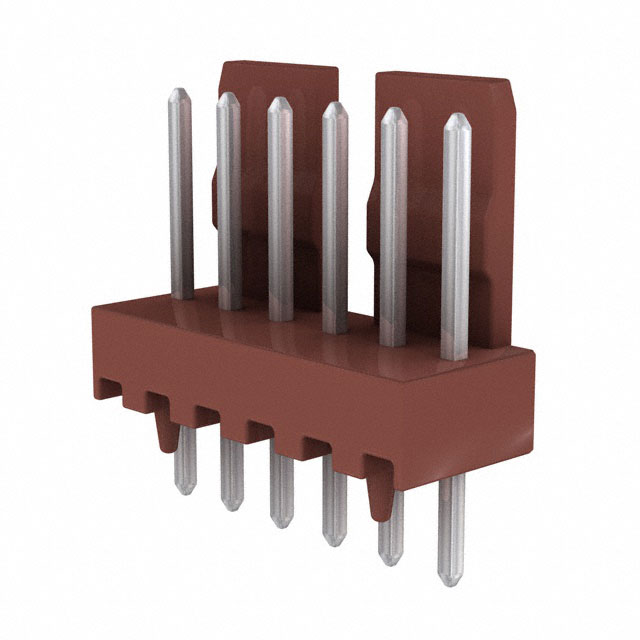

| Part Number | 0039314064 | Manufacturer | Affinity Medical Technologies - a Molex company |
|---|---|---|---|
| Description | CONN HEADER 6POS 2.5MM TIN | Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant |
| Quantity Available | 4334 pcs | Data sheet | 0039314064.pdf |
| Voltage Rating | - | Termination | Solder |
| Style | Board to Cable/Wire | Shrouding | Shrouded - 1 Wall |
| Series | KK 5045 | Row Spacing - Mating | - |
| Pitch - Mating | 0.098" (2.50mm) | Packaging | Bulk |
| Overall Contact Length | 0.559" (14.20mm) | Other Names | 003931-4064 39-31-4064 39314064 5045-06A5 |
| Operating Temperature | - | Number of Rows | 1 |
| Number of Positions Loaded | All | Number of Positions | 6 |
| Mounting Type | Through Hole | Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Material Flammability Rating | UL94 V-0 | Mated Stacking Heights | - |
| Lead Free Status / RoHS Status | Contains lead / RoHS non-compliant | Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Insulation Height | 0.461" (11.70mm) | Insulation Color | - |
| Ingress Protection | - | Features | Board Guide |
| Fastening Type | Friction Lock | Detailed Description | Connector Header Through Hole 6 position 0.098" (2.50mm) |
| Current Rating | - | Contact Type | Male Pin |
| Contact Shape | Square | Contact Material | Brass |
| Contact Length - Post | 0.134" (3.40mm) | Contact Length - Mating | 0.295" (7.49mm) |
| Contact Finish Thickness - Post | - | Contact Finish Thickness - Mating | - |
| Contact Finish - Post | Tin | Contact Finish - Mating | Tin |
| Connector Type | Header | Applications | - |
