0039302056

Affinity Medical Technologies - a Molex company

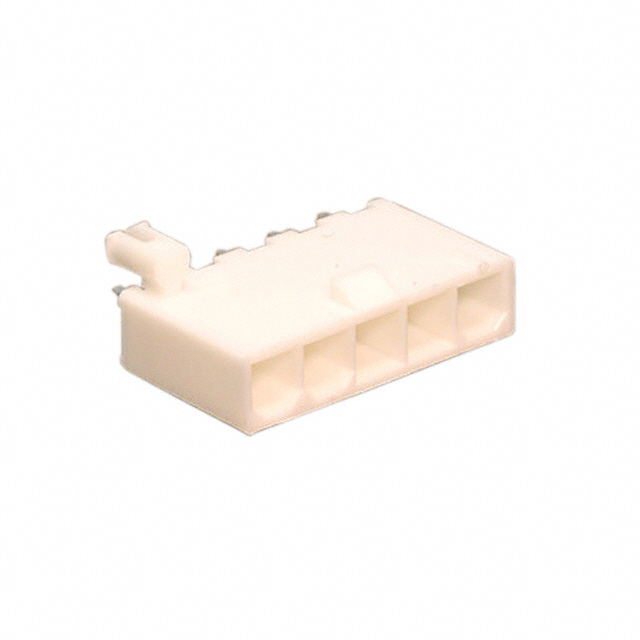

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039302056
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS 4.2MM VERT TIN
Datasheets:	1.0039302056.pdf 2.0039302056.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	5244 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 5244 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039302056

Part Number	0039302056	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	5244 pcs	Data sheet	1.0039302056.pdf 2.0039302056.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566	Row Spacing - Mating	-
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0039-30-2056 0039-30-2056-P 0039302056-P 39-30-2056 39-30-2056-P 39302056 39302056-P 5566-05B3-210 WM18445
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.504" (12.80mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 5 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	-	Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Telecommunications
