0039302035

Affinity Medical Technologies - a Molex company

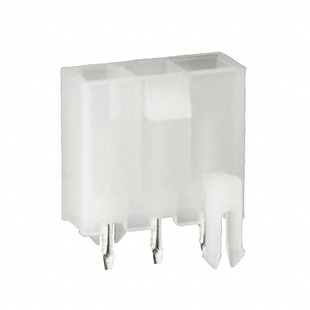

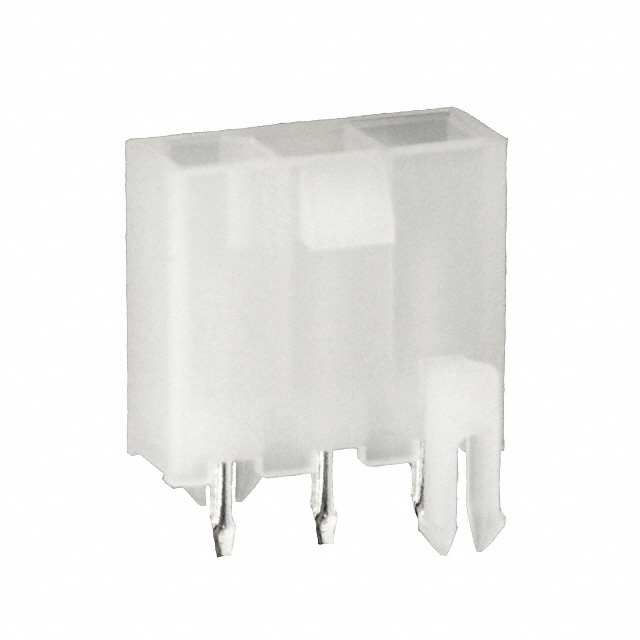

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039302035
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 4.2MM VERT TIN
Datasheets:	1.0039302035.pdf 2.0039302035.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	4915 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 4915 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039302035

Part Number	0039302035	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	4915 pcs	Data sheet	1.0039302035.pdf 2.0039302035.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566	Row Spacing - Mating	-
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	39-30-2035 39-30-2035-P 39302035 A-5566-03B3 WM18443
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA66), Nylon 6/6
Insulation Height	0.490" (12.44mm)	Insulation Color	Natural
Ingress Protection	-	Features	Board Lock
Fastening Type	Locking Ramp	Detailed Description	Connector Header Through Hole 3 position 0.165" (4.20mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.138" (3.50mm)	Contact Length - Mating	-
Contact Finish Thickness - Post	35.0µin (0.90µm)	Contact Finish Thickness - Mating	35.4µin (0.90µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header	Applications	General Purpose, Industrial, Telecommunications
