0039300200

Affinity Medical Technologies - a Molex companyAffinity Medical Technologies - a Molex company

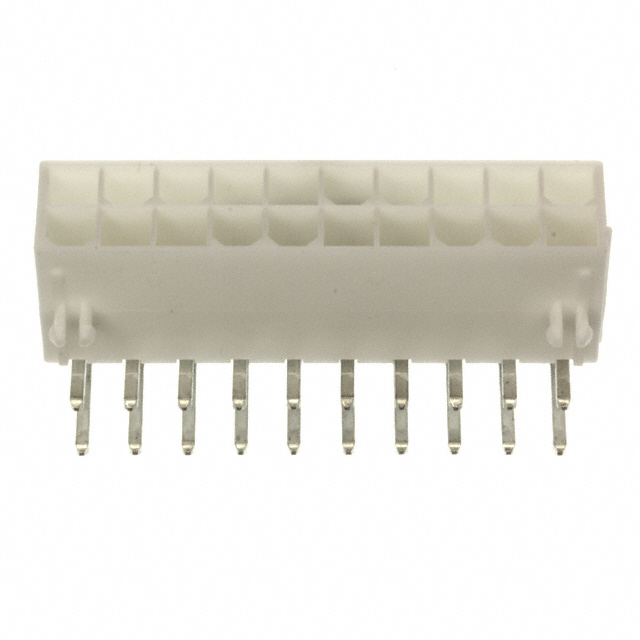

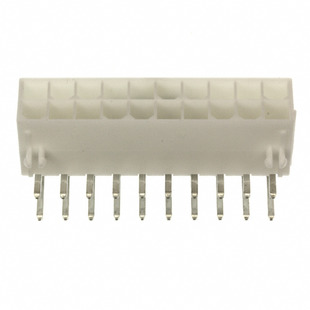

0039300200 Image
Image may be representation. See specifications for product details.

Product Overview

Part Number: 0039300200
Manufacturer/Brand: Affinity Medical Technologies - a Molex company
Product description CONN HEADER 20POS 4.2MM R/A TIN
Datasheets: 1.0039300200.pdf2.0039300200.pdf3.0039300200.pdf
RoHs Status Lead free / RoHS Compliant
Stock Condition 25503 pcs stock
Ship From Hong Kong
Shipment Way DHL/Fedex/TNT/UPS/EMS
In Stock 25503 pcs
Reference Price (In US Dollars)
1 pcs
$1.441
10 pcs
$1.382
100 pcs
$1.152
500 pcs
$0.979
1000 pcs
$0.835
Request Quote
Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]
  • Target Price:(USD)
  • Qty:
Total:$1.441

Please give us your target price if quantities greater than those displayed.

  • Part Number
  • Company Name
  • Contact Name
  • E-mail
  • Message

Specifications of 0039300200

Part Number 0039300200 Manufacturer Affinity Medical Technologies - a Molex company
Description CONN HEADER 20POS 4.2MM R/A TIN Lead Free Status / RoHS Status Lead free / RoHS Compliant
Quantity Available 25503 pcs Data sheet 1.0039300200.pdf2.0039300200.pdf3.0039300200.pdf
Voltage Rating - Termination Solder
Style Board to Cable/Wire Shrouding Shrouded - 4 Wall
Series Mini-Fit Jr 5569 Row Spacing - Mating 0.165" (4.20mm)
Pitch - Mating 0.165" (4.20mm) Packaging Bulk
Overall Contact Length - Other Names 39-30-0200
39300200
5569-20A2-210
WM21360
Operating Temperature - Number of Rows 2
Number of Positions Loaded All Number of Positions 20
Mounting Type Through Hole, Right Angle Moisture Sensitivity Level (MSL) 1 (Unlimited)
Material Flammability Rating UL94 V-0 Mated Stacking Heights -
Manufacturer Standard Lead Time 5 Weeks Lead Free Status / RoHS Status Lead free / RoHS Compliant
Insulation Material Polyamide (PA66), Nylon 6/6 Insulation Height 0.378" (9.60mm)
Insulation Color Natural Ingress Protection -
Features Board Lock Fastening Type Locking Ramp
Detailed Description Connector Header Through Hole, Right Angle 20 position 0.165" (4.20mm) Current Rating -
Contact Type Male Pin Contact Shape Square
Contact Material Brass Contact Length - Post 0.142" (3.60mm)
Contact Length - Mating - Contact Finish Thickness - Post 100.0µin (2.54µm)
Contact Finish Thickness - Mating 100.0µin (2.54µm) Contact Finish - Post Tin
Contact Finish - Mating Tin Connector Type Header
Applications General Purpose, Industrial, Telecommunications
