0039299202

Affinity Medical Technologies - a Molex company

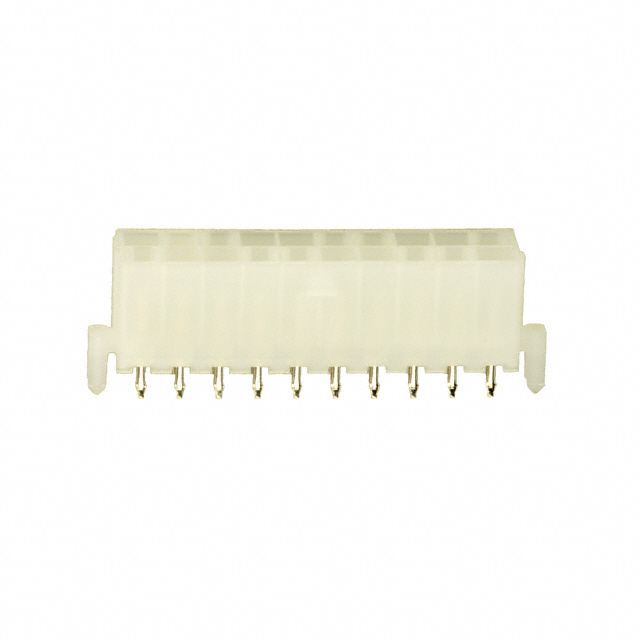

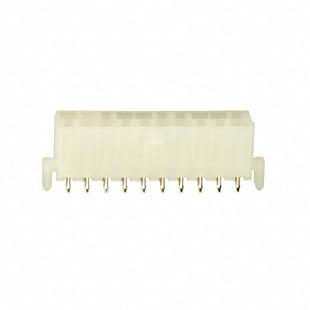

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0039299202
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 20POS 4.2MM VERT TIN
Datasheets:	1.0039299202.pdf 2.0039299202.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	53946 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 53946 pcs

Reference Price (In US Dollars)

1 pcs: $0.618

10 pcs: $0.559

100 pcs: $0.479

500 pcs: $0.399

1440 pcs: $0.342

5760 pcs: $0.304

10080 pcs: $0.297

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.618

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0039299202

Part Number	0039299202	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 20POS 4.2MM VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	53946 pcs	Data sheet	1.0039299202.pdf 2.0039299202.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5566	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0039-29-9202 0039-29-9202-E 0039299202-E 39-29-9202 39-29-9202-E 39-29-9202-ND 39299202 39299202-E A-5566-20B2 WM7346
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	20
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	5 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.504" (12.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole 20 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	35.0µin (0.90µm)
Contact Finish Thickness - Mating	35.4µin (0.90µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
