0038006865

Affinity Medical Technologies - a Molex company

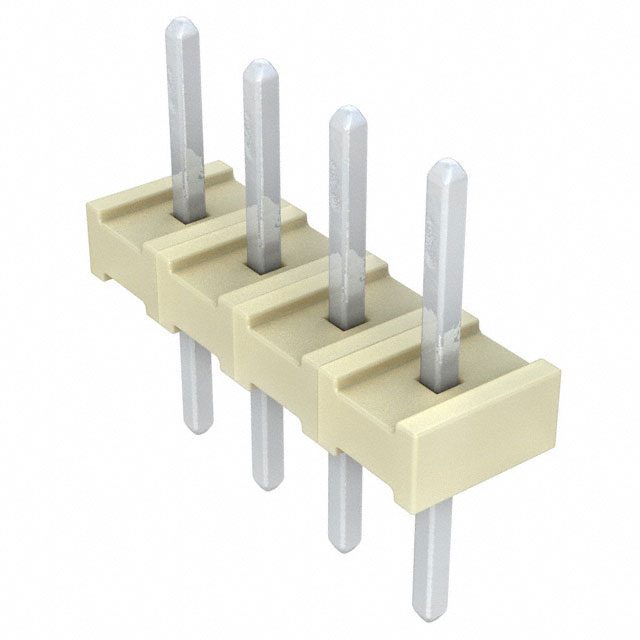

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0038006865
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	5.08MM KK HDR SQPIN VRA VD2 4POS
Datasheets:	0038006865.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	446261 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 446261 pcs

Reference Price (In US Dollars)

9000 pcs: $0.082

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.082

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0038006865

Part Number	0038006865	Manufacturer	Affinity Medical Technologies - a Molex company
Description	5.08MM KK HDR SQPIN VRA VD2 4POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	446261 pcs	Data sheet	0038006865.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 3003	Row Spacing - Mating	-
Pitch - Mating	0.200" (5.08mm)	Packaging	Bulk
Overall Contact Length	0.750" (19.05mm)	Other Names	0038-00-6865 003800-6865 300304A02 38-00-6865 38006865
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	3	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	30 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.125" (3.18mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole 4 position 0.200" (5.08mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.155" (3.94mm)
Contact Length - Mating	0.470" (11.94mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
