0026604020

Affinity Medical Technologies - a Molex company

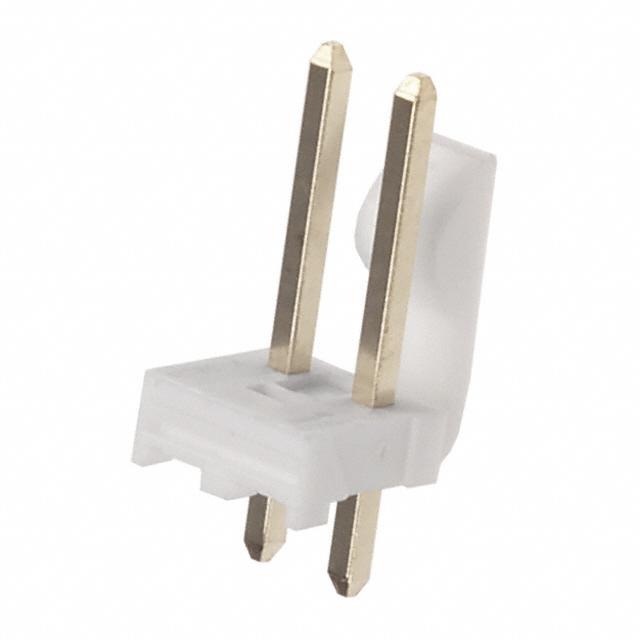

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026604020
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 2POS .156 VERT TIN
Datasheets:	0026604020.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	403919 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 403919 pcs

Reference Price (In US Dollars)

1 pcs: $0.094

10 pcs: $0.089

100 pcs: $0.062

500 pcs: $0.053

1000 pcs: $0.044

5000 pcs: $0.038

10000 pcs: $0.036

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.094

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026604020

Part Number	0026604020	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 2POS .156 VERT TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	403919 pcs	Data sheet	0026604020.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 41791	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.720" (18.29mm)	Other Names	0026-60-4020 0026-60-4020-P 0026604020-P 26-60-4020 26-60-4020-P 26604020 26604020-P 41791-0002 WM4620
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.446" (11.33mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 2 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.450" (11.43mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
