0026603110

Affinity Medical Technologies - a Molex company

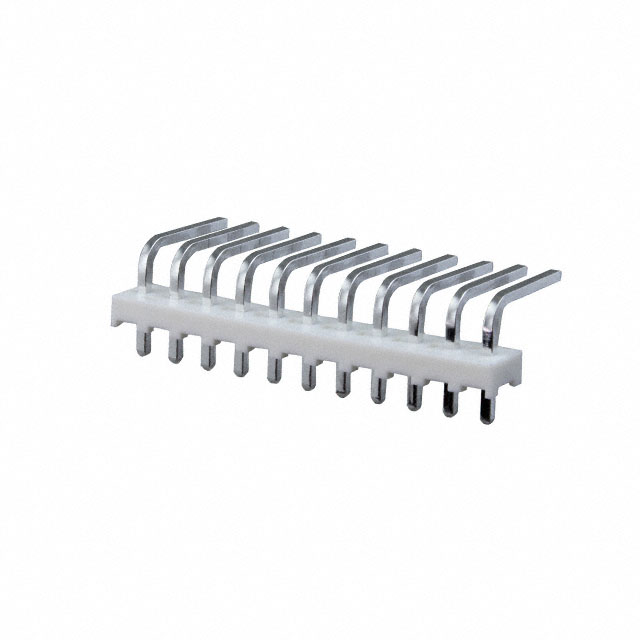

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026603110
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 156 HDR ASSY RTAN TIN 11POS
Datasheets:	0026603110.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	57150 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 57150 pcs

Reference Price (In US Dollars)

1 pcs: $0.52

10 pcs: $0.471

100 pcs: $0.403

500 pcs: $0.336

1000 pcs: $0.288

5000 pcs: $0.255

10000 pcs: $0.25

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.52

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026603110

Part Number	0026603110	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 156 HDR ASSY RTAN TIN 11POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	57150 pcs	Data sheet	0026603110.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 41772	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0026-60-3110 002660-3110 0026603110-ND 26-60-3110 26603110 41772-0011 WM19366
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.130" (3.30mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 11 position 0.156" (3.96mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.585" (14.86mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
