0026481040

Affinity Medical Technologies - a Molex company

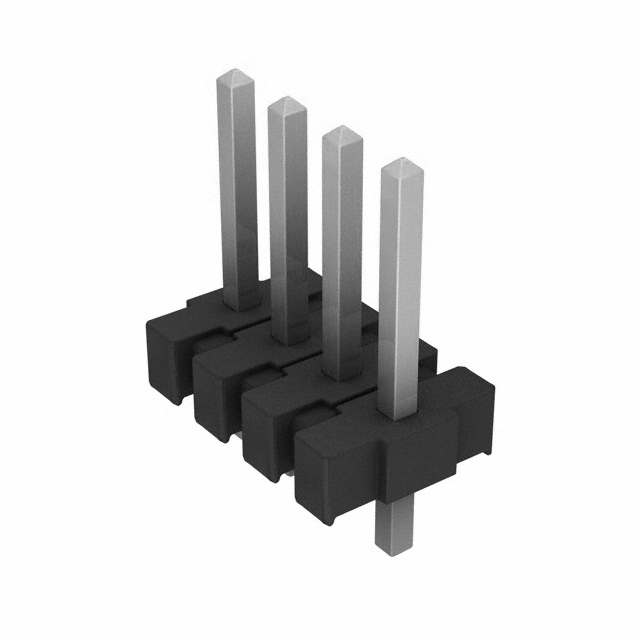

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026481040
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN BKWY HEADER 4POS STR TIN
Datasheets:	0026481040.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	347847 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 347847 pcs

Reference Price (In US Dollars)

1 pcs: $0.108

10 pcs: $0.104

25 pcs: $0.089

50 pcs: $0.076

100 pcs: $0.073

250 pcs: $0.065

500 pcs: $0.062

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.108

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026481040

Part Number	0026481040	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN BKWY HEADER 4POS STR TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	347847 pcs	Data sheet	0026481040.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 41661	Row Spacing - Mating	-
Pitch - Mating	0.156" (3.96mm)	Packaging	Bulk
Overall Contact Length	0.890" (22.61mm)	Other Names	0026-48-1040 002648-1040 0026481040-ND 26-48-1040 26481040 WM50002-04 WM50002-1040 WM50002-1040-ND
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyester, Glass Filled
Insulation Height	0.128" (3.25mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole 4 position 0.156" (3.96mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	Brass
Contact Length - Post	0.172" (4.37mm)	Contact Length - Mating	0.590" (14.99mm)
Contact Finish Thickness - Post	60.0µin (1.52µm)	Contact Finish Thickness - Mating	60.0µin (1.52µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
