0026013114

Affinity Medical Technologies - a Molex company

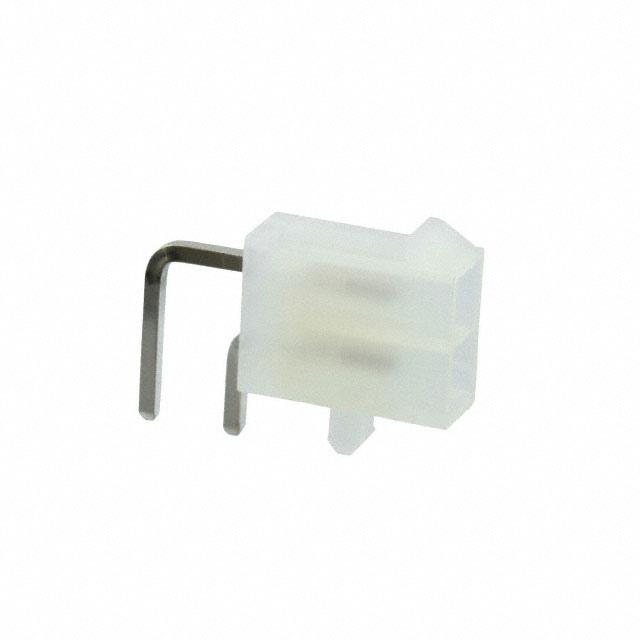

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0026013114
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	MINIFIT JR RA DR /PEGS 15AU V2 2
Datasheets:	1.0026013114.pdf 2.0026013114.pdf 3.0026013114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	101787 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 101787 pcs

Reference Price (In US Dollars)

1 pcs: $0.322

10 pcs: $0.284

100 pcs: $0.245

500 pcs: $0.201

2280 pcs: $0.167

6840 pcs: $0.156

11400 pcs: $0.148

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.322

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0026013114

Part Number	0026013114	Manufacturer	Affinity Medical Technologies - a Molex company
Description	MINIFIT JR RA DR /PEGS 15AU V2 2	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	101787 pcs	Data sheet	1.0026013114.pdf 2.0026013114.pdf 3.0026013114.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit Jr 5569	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	-	Packaging	Tray
Overall Contact Length	-	Other Names	0026-01-3114 0026013114-ND 026-01-3114 26-01-3114 2601-3114 26013114 5569-02A2GS2-T WM14505
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	2
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-2	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.378" (9.60mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Locking Ramp
Detailed Description	Connector Header Through Hole, Right Angle 2 position	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.142" (3.60mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial, Telecommunications
