0022288040

Affinity Medical Technologies - a Molex company

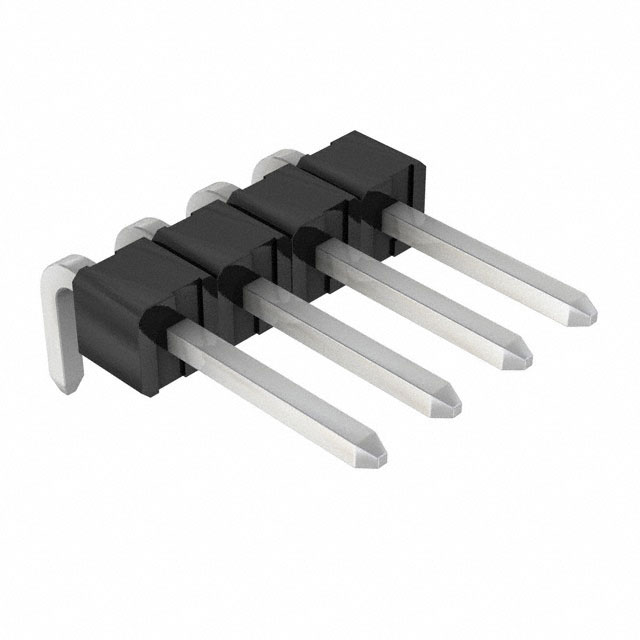

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022288040
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 4POS .100 R/A TIN
Datasheets:	1.0022288040.pdf 2.0022288040.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	349267 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 349267 pcs

Reference Price (In US Dollars)

1 pcs: $0.098

10 pcs: $0.093

25 pcs: $0.08

50 pcs: $0.068

100 pcs: $0.065

250 pcs: $0.058

500 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.098

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022288040

Part Number	0022288040	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 4POS .100 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	349267 pcs	Data sheet	1.0022288040.pdf 2.0022288040.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 42377	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022-28-8040 0022-28-8040-E 0022288040-E 22-28-8040 22-28-8040-E 22-28-8040-ND 22288040 22288040-E WM50013-04 WM6004 WM6004-ND
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Insulation Material	Polyamide (PA), Nylon, Glass Filled
Insulation Height	0.098" (2.50mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 4 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	-
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	0.244" (6.20mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	100.0µin (2.54µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Tin
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Medical, Telecommunications
