0022272131

Affinity Medical Technologies - a Molex company

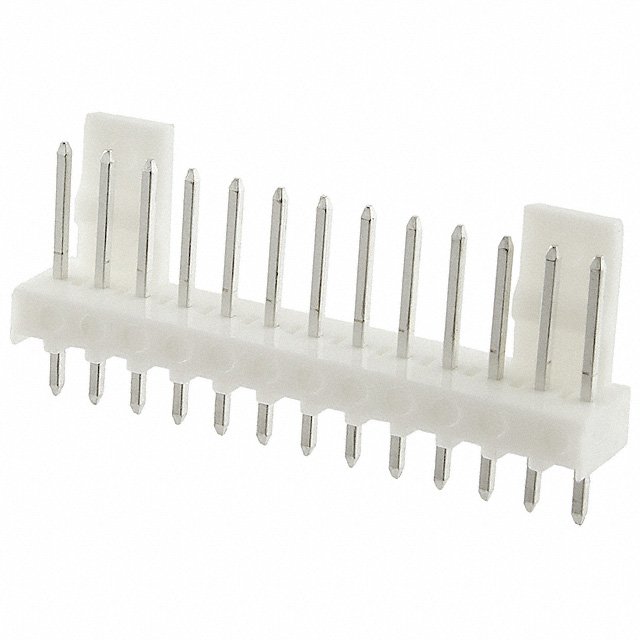

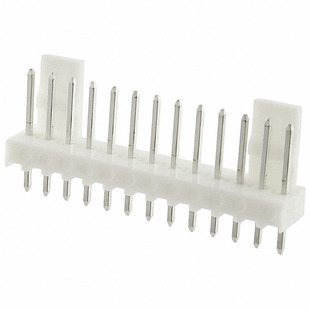

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022272131
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.54MM KK HDR VT FRICLK 13POS
Datasheets:	0022272131.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	117223 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 117223 pcs

Reference Price (In US Dollars)

1 pcs: $0.325

10 pcs: $0.286

100 pcs: $0.246

500 pcs: $0.202

1000 pcs: $0.179

5000 pcs: $0.157

10000 pcs: $0.149

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.325

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022272131

Part Number	0022272131	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.54MM KK HDR VT FRICLK 13POS	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	117223 pcs	Data sheet	0022272131.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 1 Wall
Series	KK 6410	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.560" (14.22mm)	Other Names	0022-27-2131 002227-2131 0022272131-ND 22-27-2131 22272131 AE-6410-13A(222) WM9877
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	13
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.461" (11.70mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 13 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	100.0µin (2.54µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
