0022252246

Affinity Medical Technologies - a Molex company

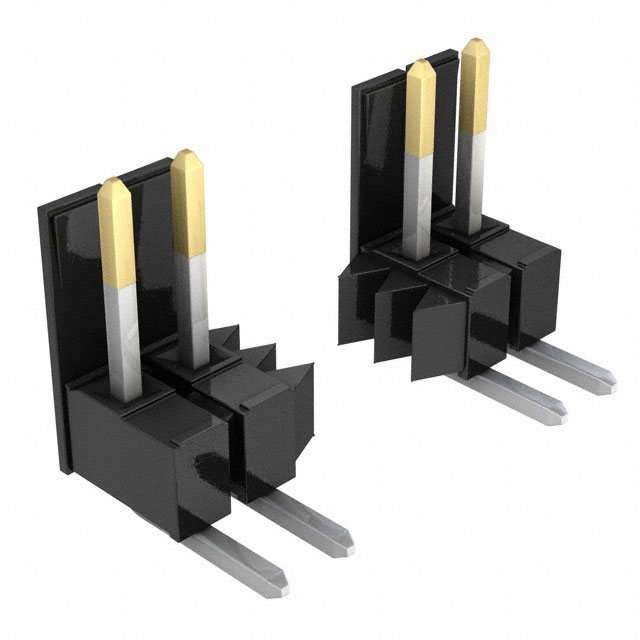

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022252246
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	100 KK BKWY HDR 15 SAU 24POS
Datasheets:	1.0022252246.pdf 2.0022252246.pdf
RoHs Status	Not applicable / Not applicable
Stock Condition	3188 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 3188 pcs

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022252246

Part Number	0022252246	Manufacturer	Affinity Medical Technologies - a Molex company
Description	100 KK BKWY HDR 15 SAU 24POS	Lead Free Status / RoHS Status	Not applicable / Not applicable
Quantity Available	3188 pcs	Data sheet	1.0022252246.pdf 2.0022252246.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 42624	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022-25-2246 002225-2246 22-25-2246 22252246 42624-0300
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	22	Number of Positions	24
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Lead Free Status / RoHS Status	Not applicable / Not applicable	Insulation Material	Polyamide (PA), Nylon, Glass Filled
Insulation Height	0.284" (7.21mm)	Insulation Color	Black
Ingress Protection	-	Features	-
Fastening Type	Push-Pull	Detailed Description	Connector Header Through Hole, Right Angle 24 position 0.100" (2.54mm)
Current Rating	-	Contact Type	Male Pin
Contact Shape	Square	Contact Material	-
Contact Length - Post	0.120" (3.05mm)	Contact Length - Mating	0.295" (7.49mm)
Contact Finish Thickness - Post	100.0µin (2.54µm)	Contact Finish Thickness - Mating	20.0µin (0.51µm)
Contact Finish - Post	Tin	Contact Finish - Mating	Gold
Connector Type	Header, Breakaway	Applications	Automotive, General Purpose, Medical, Telecommunications
