0022235044

Affinity Medical Technologies - a Molex company

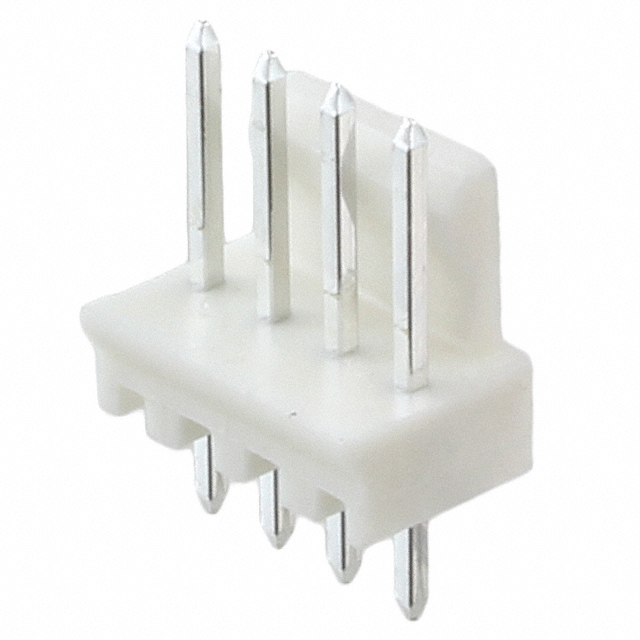

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022235044
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	KK 100 HDR ASSY FLK 4POS TIN
Datasheets:	0022235044.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	232076 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 232076 pcs

Reference Price (In US Dollars)

1 pcs: $0.148

10 pcs: $0.141

100 pcs: $0.098

500 pcs: $0.084

1000 pcs: $0.07

5000 pcs: $0.06

10000 pcs: $0.056

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.148

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022235044

Part Number	0022235044	Manufacturer	Affinity Medical Technologies - a Molex company
Description	KK 100 HDR ASSY FLK 4POS TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	232076 pcs	Data sheet	0022235044.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 43009	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	0.560" (14.22mm)	Other Names	0022-23-5044 002223-5044 0022235044-ND 22-23-5044 22235044 A-43009-0004 WM9813
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyester, Glass Filled	Insulation Height	0.322" (8.18mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole 4 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.140" (3.56mm)
Contact Length - Mating	0.295" (7.49mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
