0022124052

Affinity Medical Technologies - a Molex company

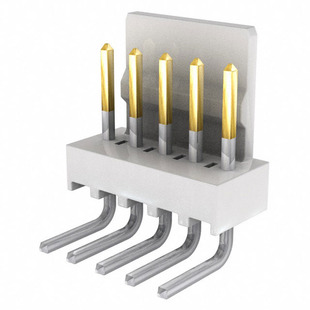

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022124052
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	2.54MM KK HDR RA FRICLK .5AU 5CK
Datasheets:	0022124052.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	119407 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 119407 pcs

Reference Price (In US Dollars)

1 pcs: $0.311

10 pcs: $0.272

100 pcs: $0.235

500 pcs: $0.192

1000 pcs: $0.171

5000 pcs: $0.149

10000 pcs: $0.142

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.311

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022124052

Part Number	0022124052	Manufacturer	Affinity Medical Technologies - a Molex company
Description	2.54MM KK HDR RA FRICLK .5AU 5CK	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	119407 pcs	Data sheet	0022124052.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 7395	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022-12-4052 0022124052-ND 022-12-4052 22-12-4052 2212-4052 22124052 739505BG WM16231
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.228" (5.80mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.150" (3.81mm)
Contact Length - Mating	0.264" (6.70mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	20.0µin (0.51µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
