0022122114

Affinity Medical Technologies - a Molex company

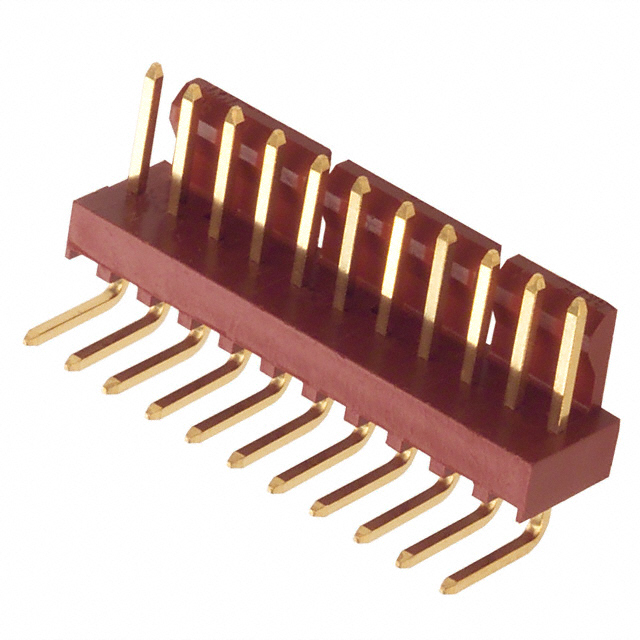

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022122114
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 11POS .100 R/A GOLD
Datasheets:	1.0022122114.pdf 2.0022122114.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42762 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42762 pcs

Reference Price (In US Dollars)

1 pcs: $0.722

10 pcs: $0.657

100 pcs: $0.563

500 pcs: $0.469

1000 pcs: $0.402

5000 pcs: $0.357

10000 pcs: $0.349

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.722

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022122114

Part Number	0022122114	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 11POS .100 R/A GOLD	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42762 pcs	Data sheet	1.0022122114.pdf 2.0022122114.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 1 Wall
Series	KK 7478	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	22-12-2114 22-12-2114-P 22122114 A-7478-11A241 WM2720
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	11
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.250" (6.35mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Friction Lock
Detailed Description	Connector Header Through Hole, Right Angle 11 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.141" (3.58mm)
Contact Length - Mating	0.264" (6.70mm)	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	20.0µin (0.51µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
