0022057035

Affinity Medical Technologies - a Molex company

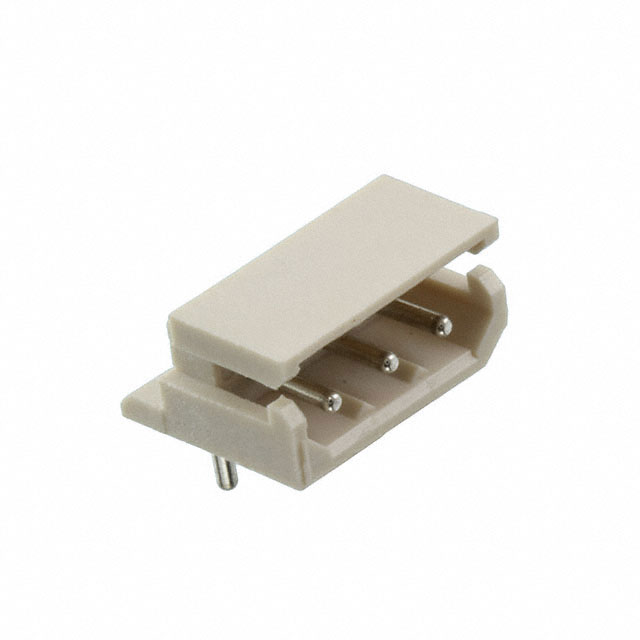

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022057035
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 3POS 2.5MM R/A TIN
Datasheets:	0022057035.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	182644 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 182644 pcs

Reference Price (In US Dollars)

1 pcs: $0.195

10 pcs: $0.181

100 pcs: $0.139

500 pcs: $0.121

1000 pcs: $0.10

5000 pcs: $0.088

10000 pcs: $0.082

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.195

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022057035

Part Number	0022057035	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 3POS 2.5MM R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	182644 pcs	Data sheet	0022057035.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	SPOX 5268	Row Spacing - Mating	-
Pitch - Mating	0.098" (2.50mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	0022-05-7035 0022-05-7035-E 0022057035-E 22-05-7035 22-05-7035-E 22-05-7035-ND 22057035 22057035-E 5268-03A WM18901
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	3
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	11 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6, Glass Filled	Insulation Height	0.193" (4.90mm)
Insulation Color	Natural	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole, Right Angle 3 position 0.098" (2.50mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Circular
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	0.138" (3.50mm)	Contact Finish Thickness - Post	160.0µin (4.06µm)
Contact Finish Thickness - Mating	160.0µin (4.06µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Industrial, Medical, Telecommunications
