0022052051

Affinity Medical Technologies - a Molex company

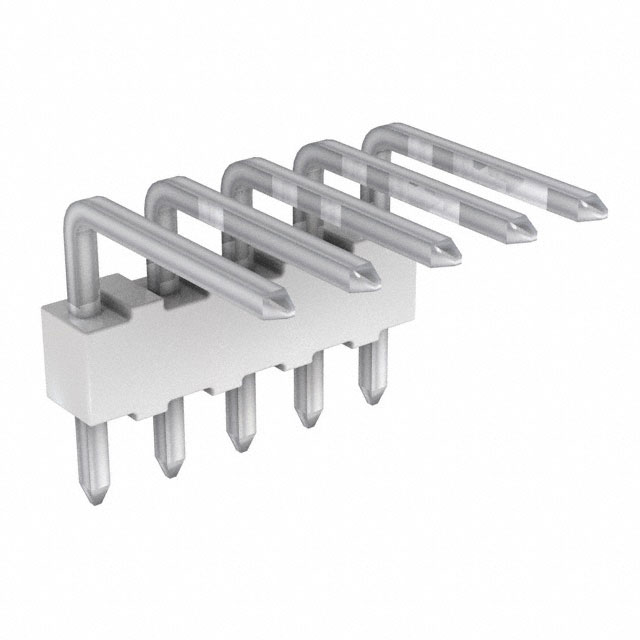

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0022052051
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 5POS .100 R/A TIN
Datasheets:	1.0022052051.pdf 2.0022052051.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	208914 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 208914 pcs

Reference Price (In US Dollars)

1 pcs: $0.152

10 pcs: $0.143

100 pcs: $0.10

500 pcs: $0.086

1000 pcs: $0.072

5000 pcs: $0.061

10000 pcs: $0.057

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.152

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0022052051

Part Number	0022052051	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 5POS .100 R/A TIN	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	208914 pcs	Data sheet	1.0022052051.pdf 2.0022052051.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Unshrouded
Series	KK 4094	Row Spacing - Mating	-
Pitch - Mating	0.100" (2.54mm)	Packaging	Bulk
Overall Contact Length	-	Other Names	22-05-2051 22-05-2051-P 22052051 A-4094-05A197 WM4103
Operating Temperature	-	Number of Rows	1
Number of Positions Loaded	All	Number of Positions	5
Mounting Type	Through Hole, Right Angle	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA), Nylon	Insulation Height	0.130" (3.30mm)
Insulation Color	White	Ingress Protection	-
Features	-	Fastening Type	Push-Pull
Detailed Description	Connector Header Through Hole, Right Angle 5 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	-	Contact Length - Post	0.124" (3.15mm)
Contact Length - Mating	0.369" (9.37mm)	Contact Finish Thickness - Post	60.0µin (1.52µm)
Contact Finish Thickness - Mating	60.0µin (1.52µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Medical, Telecommunications
