0015800289

Affinity Medical Technologies - a Molex company

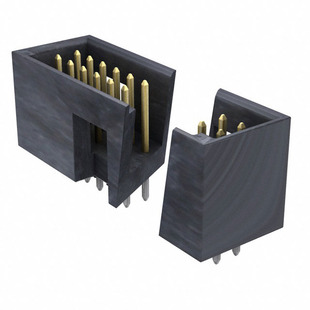

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015800289
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 28POS VERT GOLD T/H
Datasheets:	0015800289.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	28326 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 28326 pcs

Reference Price (In US Dollars)

1152 pcs: $1.299

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$1.299

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015800289

Part Number	0015800289	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 28POS VERT GOLD T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	28326 pcs	Data sheet	0015800289.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid 70567	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.570" (14.48mm)	Other Names	0015-80-0289 001580-0289 15-80-0289 15800289 A-70567-0284
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	28
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	8 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.475" (12.07mm)
Insulation Color	Black	Ingress Protection	-
Features	-	Fastening Type	Detent Lock
Detailed Description	Connector Header Through Hole 28 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.315" (8.00mm)	Contact Finish Thickness - Post	74.8µin (1.90µm)
Contact Finish Thickness - Mating	15.0µin (0.38µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
