0015477514

Affinity Medical Technologies - a Molex company

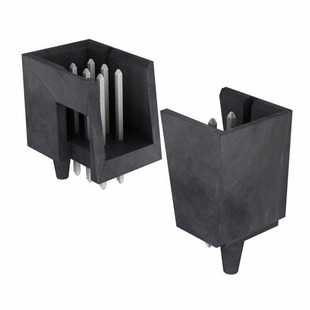

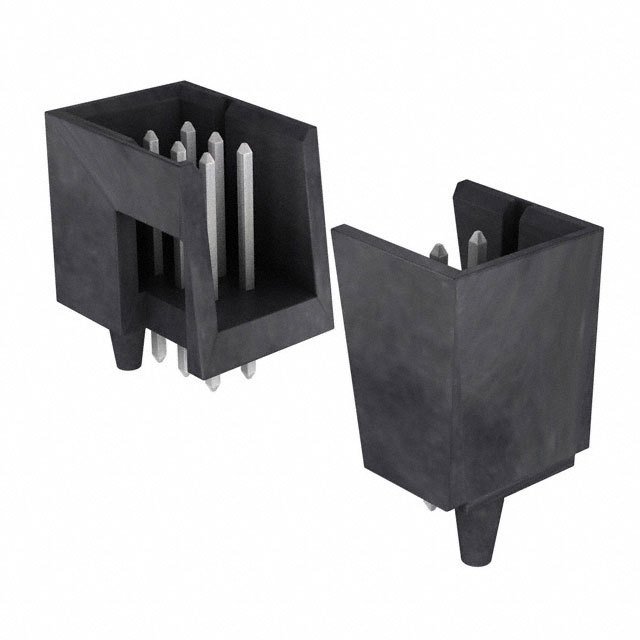

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015477514
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN HEADER 14POS VERT TIN T/H
Datasheets:	0015477514.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	60234 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 60234 pcs

Reference Price (In US Dollars)

1008 pcs: $0.573

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.573

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015477514

Part Number	0015477514	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN HEADER 14POS VERT TIN T/H	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	60234 pcs	Data sheet	0015477514.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Cable/Wire	Shrouding	Shrouded - 4 Wall
Series	C-Grid 70568	Row Spacing - Mating	0.100" (2.54mm)
Pitch - Mating	0.100" (2.54mm)	Packaging	Tube
Overall Contact Length	0.570" (14.48mm)	Other Names	0015-47-7514 001547-7514 15-47-7514 15477514 A-70568-0005
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	14
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	9 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled	Insulation Height	0.475" (12.07mm)
Insulation Color	Black	Ingress Protection	-
Features	Board Guide	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 14 position 0.100" (2.54mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Copper Alloy	Contact Length - Post	0.130" (3.30mm)
Contact Length - Mating	0.315" (8.00mm)	Contact Finish Thickness - Post	150.0µin (3.81µm)
Contact Finish Thickness - Mating	150.0µin (3.81µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Tin	Connector Type	Header
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
