0015389032

Affinity Medical Technologies - a Molex company

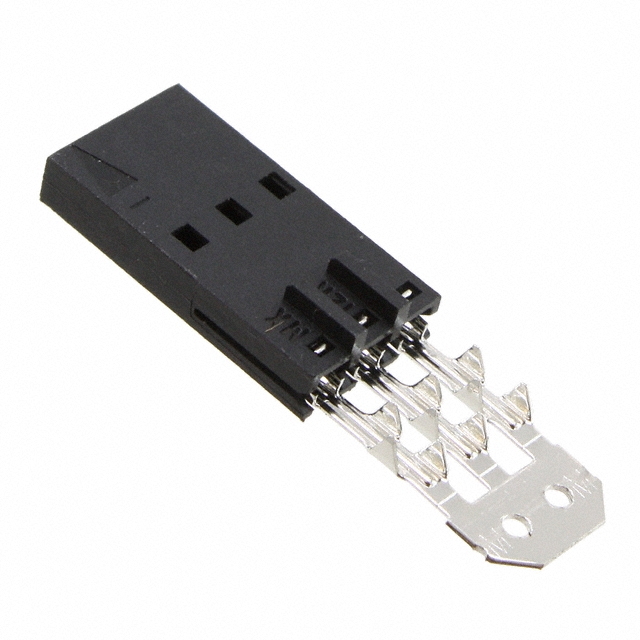

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015389032
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN CIC FFC PLUG 3POS 2.54MM
Datasheets:	0015389032.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	216608 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 216608 pcs

Reference Price (In US Dollars)

4200 pcs: $0.162

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.162

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015389032

Part Number	0015389032	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN CIC FFC PLUG 3POS 2.54MM	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	216608 pcs	Data sheet	0015389032.pdf
Voltage Rating	250V	Termination	IDC
Series	SL 70431	Pitch	0.100" (2.54mm)
Packaging	Tube	Other Names	0015-38-9032 001538-9032 0015389032-ND 15-38-9032 15389032 70431-0072 WM9513
Operating Temperature	-40°C ~ 105°C	Number of Positions	3
Mounting Type	Free Hanging (In-Line)	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Mating Cycles	25	Material Flammability Rating	UL94 V-0
Manufacturer Standard Lead Time	5 Weeks	Locking Feature	Latch Lock
Lead Free Status / RoHS Status	Lead free / RoHS Compliant	Housing Material	Polybutylene Terephthalate (PBT)
Housing Color	Black	Height Above Board	-
Flat Flex Type	CIC, FFC	Features	-
FFC, FCB Thickness	0.005 ~ 0.11mm, 0.36mm	Detailed Description	3 Position CIC, FFC Connector Plug 0.100" (2.54mm) Free Hanging (In-Line)
Current Rating	-	Contact Material	Phosphor Bronze
Contact Finish Thickness	150.0µin (3.81µm)	Contact Finish	Tin
Connector/Contact Type	Plug	Cable End Type	Straight
Actuator Material	-	Actuator Color	-
