0015286042

Affinity Medical Technologies - a Molex company

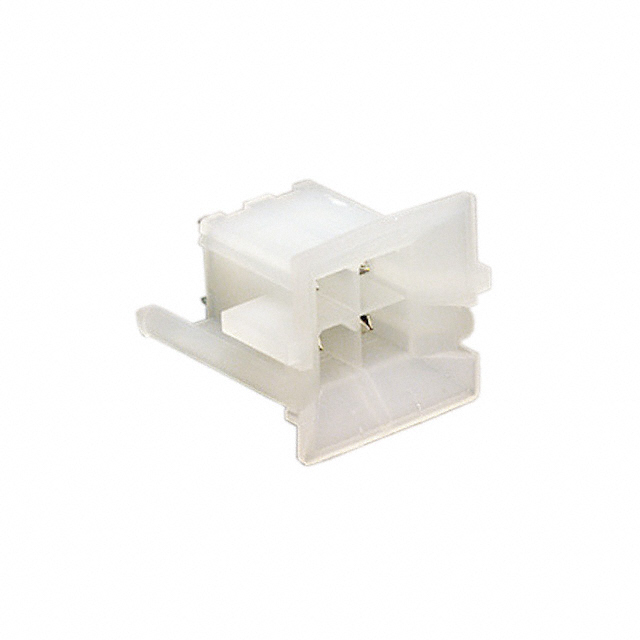

Image may be representation. See specifications for product details.

Product Overview

Part Number:	0015286042
Manufacturer/Brand:	Affinity Medical Technologies - a Molex company
Product description	CONN VERT HEADER 4POS DUAL
Datasheets:	0015286042.pdf
RoHs Status	Lead free / RoHS Compliant
Stock Condition	42436 pcs stock
Ship From	Hong Kong
Shipment Way	DHL/Fedex/TNT/UPS/EMS

In Stock 42436 pcs

Reference Price (In US Dollars)

1 pcs: $0.762

10 pcs: $0.693

25 pcs: $0.651

50 pcs: $0.622

100 pcs: $0.594

250 pcs: $0.537

500 pcs: $0.495

1000 pcs: $0.424

2500 pcs: $0.396

Request Quote: Please complete all required fields with your contact information.Click "SUBMIT RFQ" we will contact you shortly by email. Or Email us:[email protected]

Target Price:(USD)
Qty:

Total:$0.762

Please give us your target price if quantities greater than those displayed.

Part Number
Company Name
Contact Name
E-mail
Message

Specifications of 0015286042

Part Number	0015286042	Manufacturer	Affinity Medical Technologies - a Molex company
Description	CONN VERT HEADER 4POS DUAL	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Quantity Available	42436 pcs	Data sheet	0015286042.pdf
Voltage Rating	-	Termination	Solder
Style	Board to Board or Cable	Shrouding	Shrouded - 4 Wall
Series	Mini-Fit BMI 42440	Row Spacing - Mating	0.165" (4.20mm)
Pitch - Mating	0.165" (4.20mm)	Packaging	Tray
Overall Contact Length	-	Other Names	0015-28-6042 001528-6042 0015286042-ND 15-28-6042 15286042 A-42440-0422 WM19430
Operating Temperature	-	Number of Rows	2
Number of Positions Loaded	All	Number of Positions	4
Mounting Type	Through Hole	Moisture Sensitivity Level (MSL)	1 (Unlimited)
Material Flammability Rating	UL94 V-0	Mated Stacking Heights	-
Manufacturer Standard Lead Time	7 Weeks	Lead Free Status / RoHS Status	Lead free / RoHS Compliant
Insulation Material	Polyamide (PA66), Nylon 6/6	Insulation Height	0.555" (14.10mm)
Insulation Color	Natural	Ingress Protection	-
Features	Board Lock	Fastening Type	Latch Holder
Detailed Description	Connector Header Through Hole 4 position 0.165" (4.20mm)	Current Rating	-
Contact Type	Male Pin	Contact Shape	Square
Contact Material	Brass	Contact Length - Post	0.138" (3.50mm)
Contact Length - Mating	-	Contact Finish Thickness - Post	100.0µin (2.54µm)
Contact Finish Thickness - Mating	30.0µin (0.76µm)	Contact Finish - Post	Tin
Contact Finish - Mating	Gold	Connector Type	Header
Applications	General Purpose, Industrial, Medical, Telecommunications
